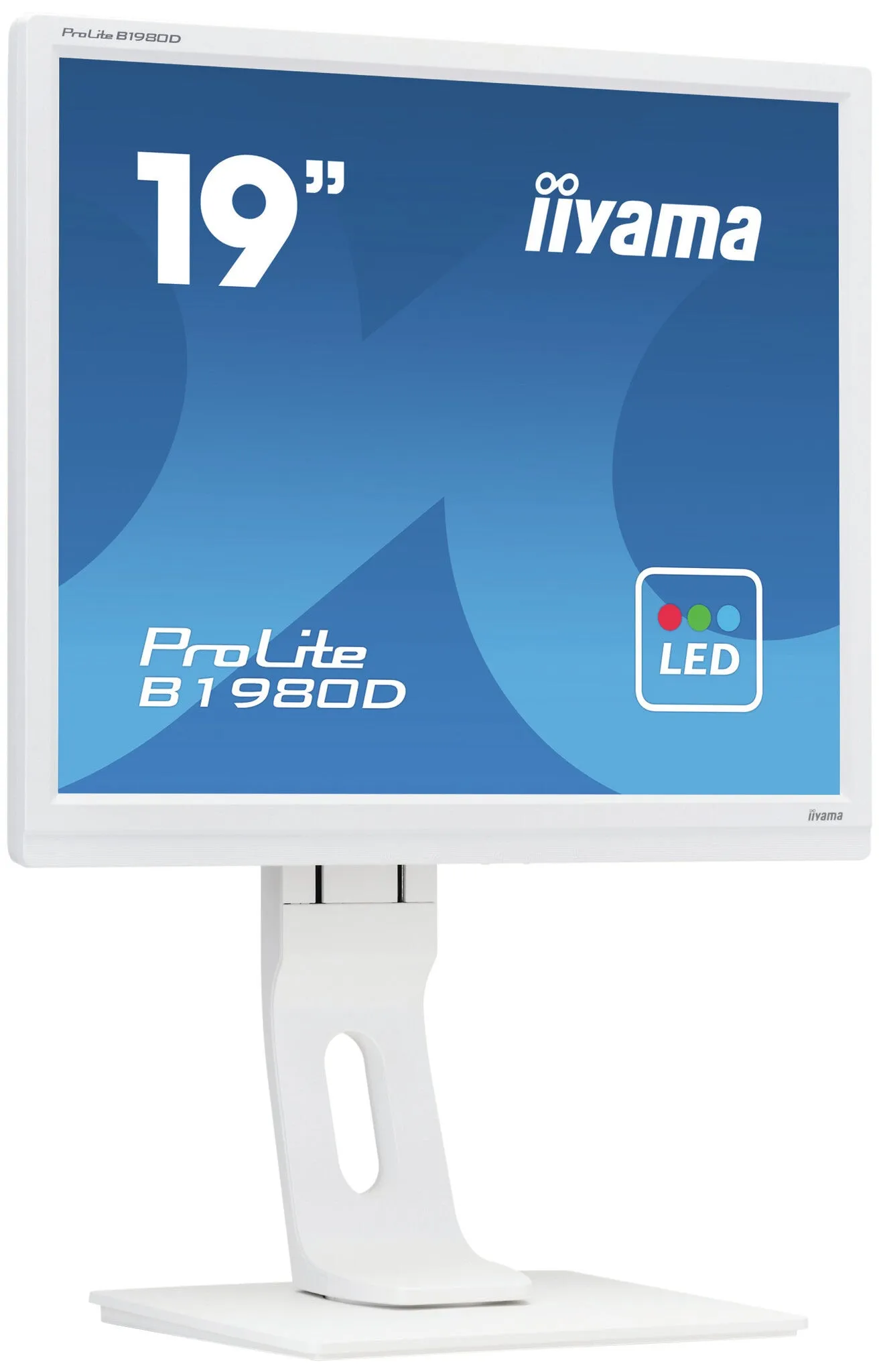

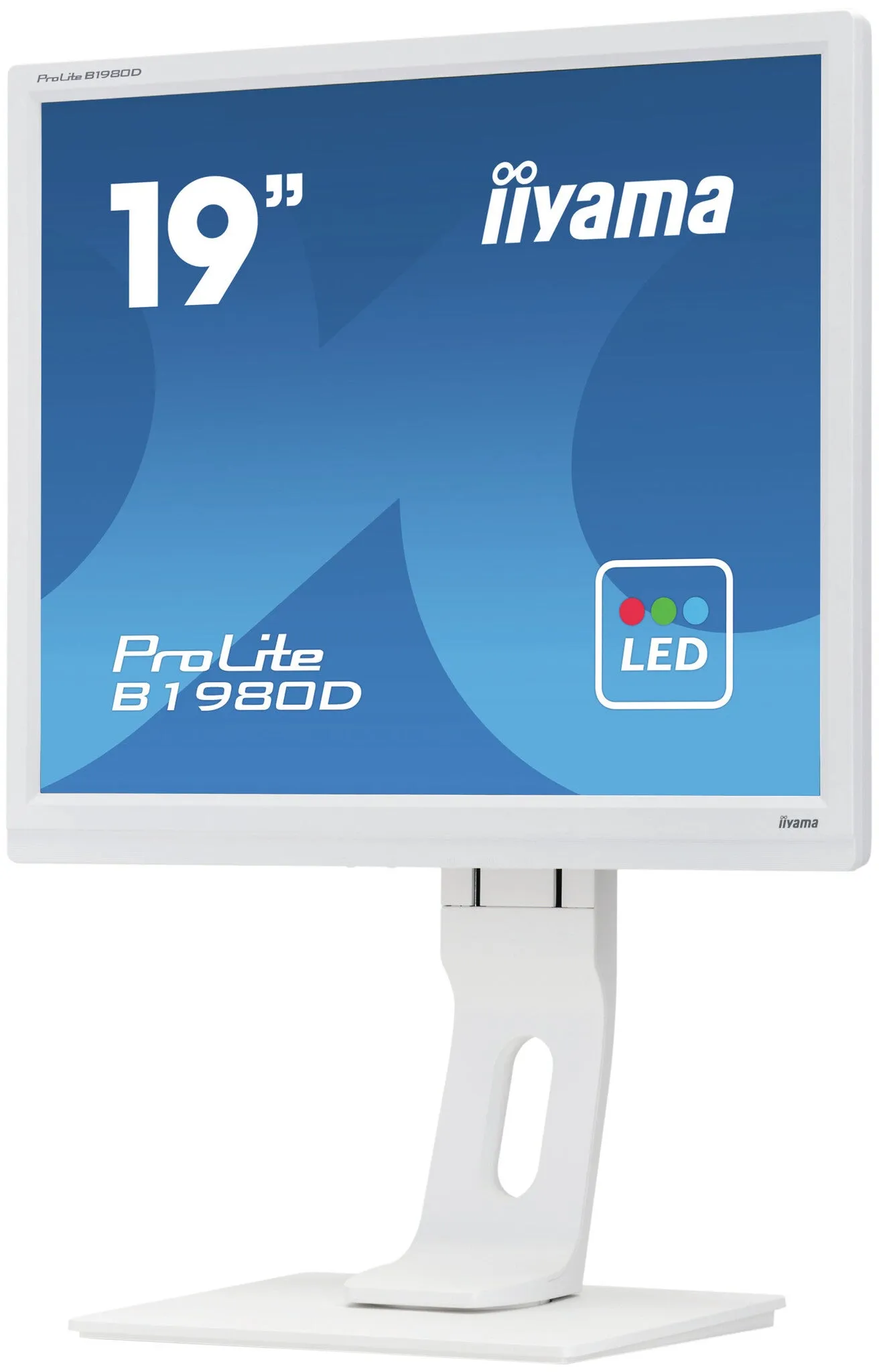

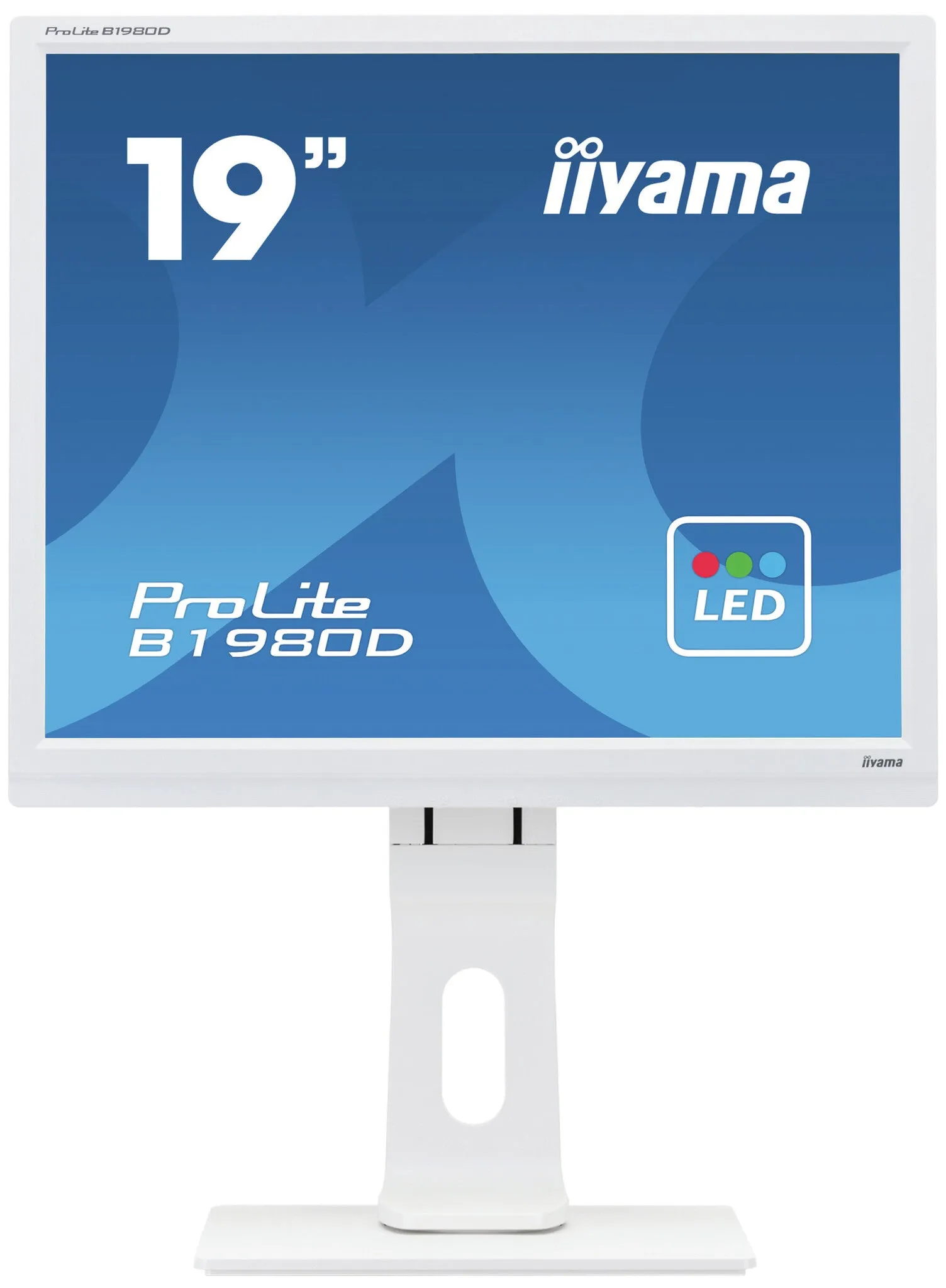

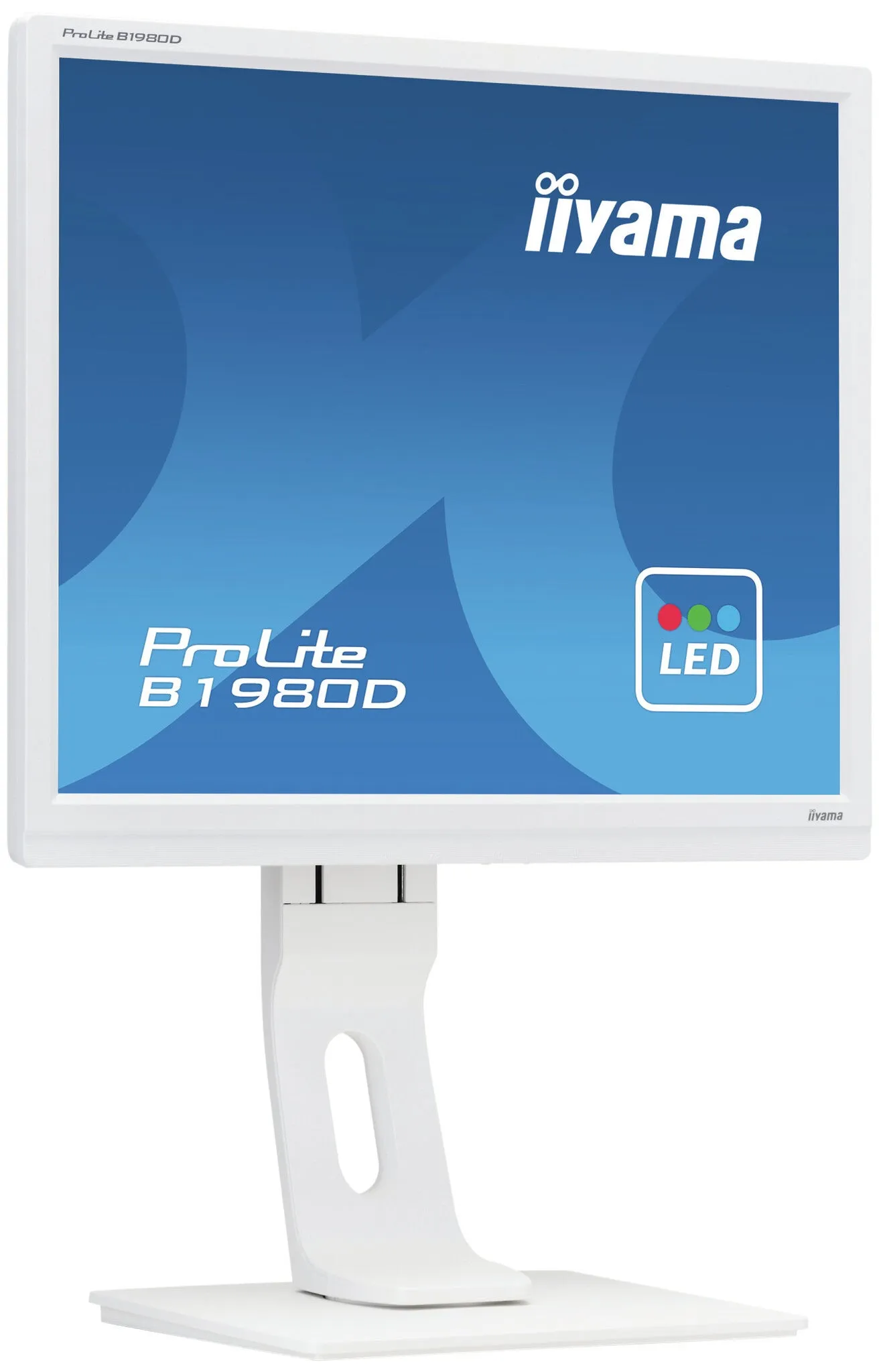

iiyama ProLite B1980D-W1 19" SXGA Monitor - 60Hz, 5ms, TN, Height Adjustable, White
iiyama ProLite B1980D-W1. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LED, Display surface: Matt, Response time: 5 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 170, Viewing angle, vertical: 160. VESA mounting, Height adjustment. Product colour: White
Designed for business, this LED-backlit monitor with Height Adjustability and Screen Rotation allows you to set the perfect position of the screen ensuring ergonomic posture and optimal viewing comfort. The 5ms response time and high contrast make the B1980D ideal for a wide range of business applications. sRGB and gamma correction functions permit even the finest nuances of colour to be set accurately.
LED-BACKLIT
A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.
HAS PIVOT

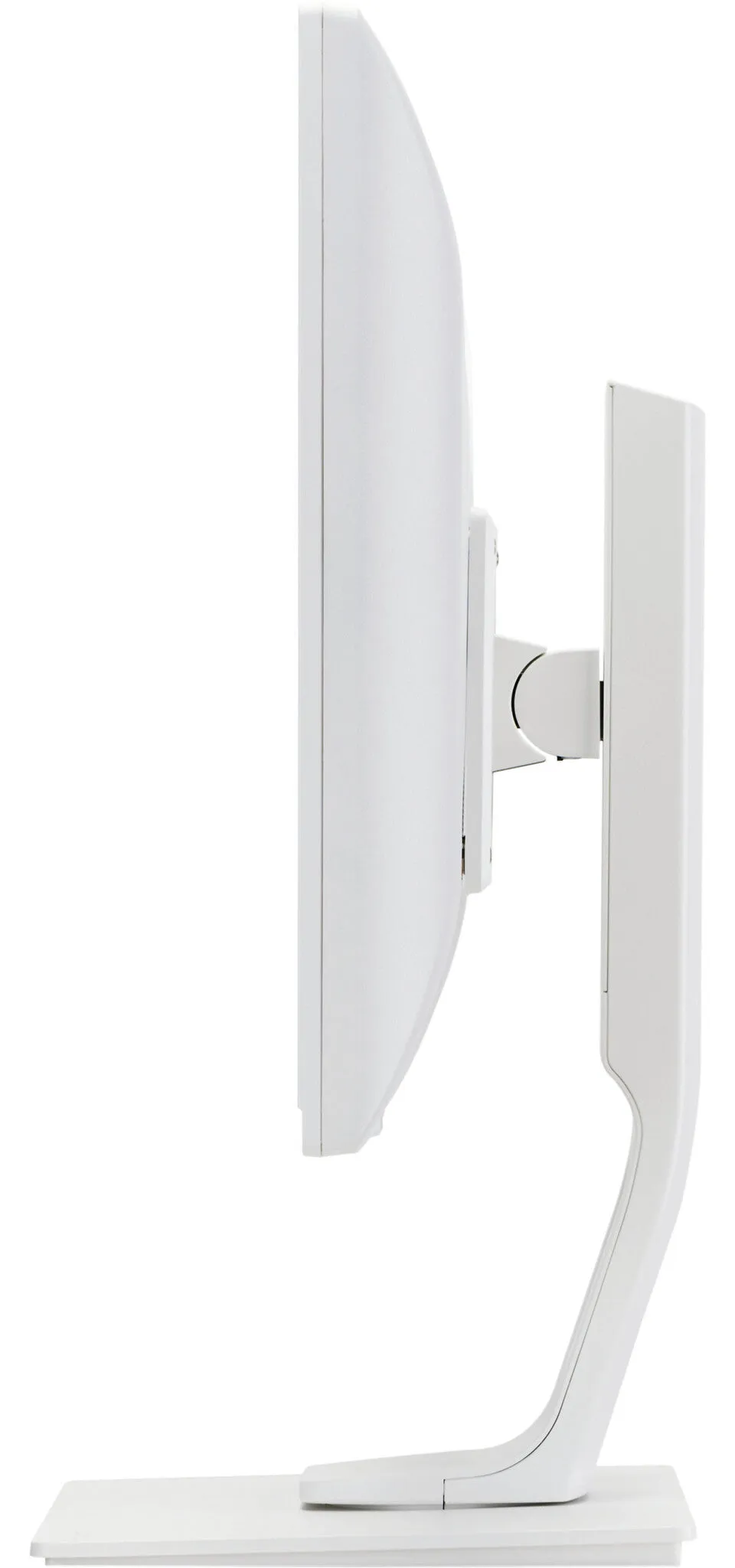

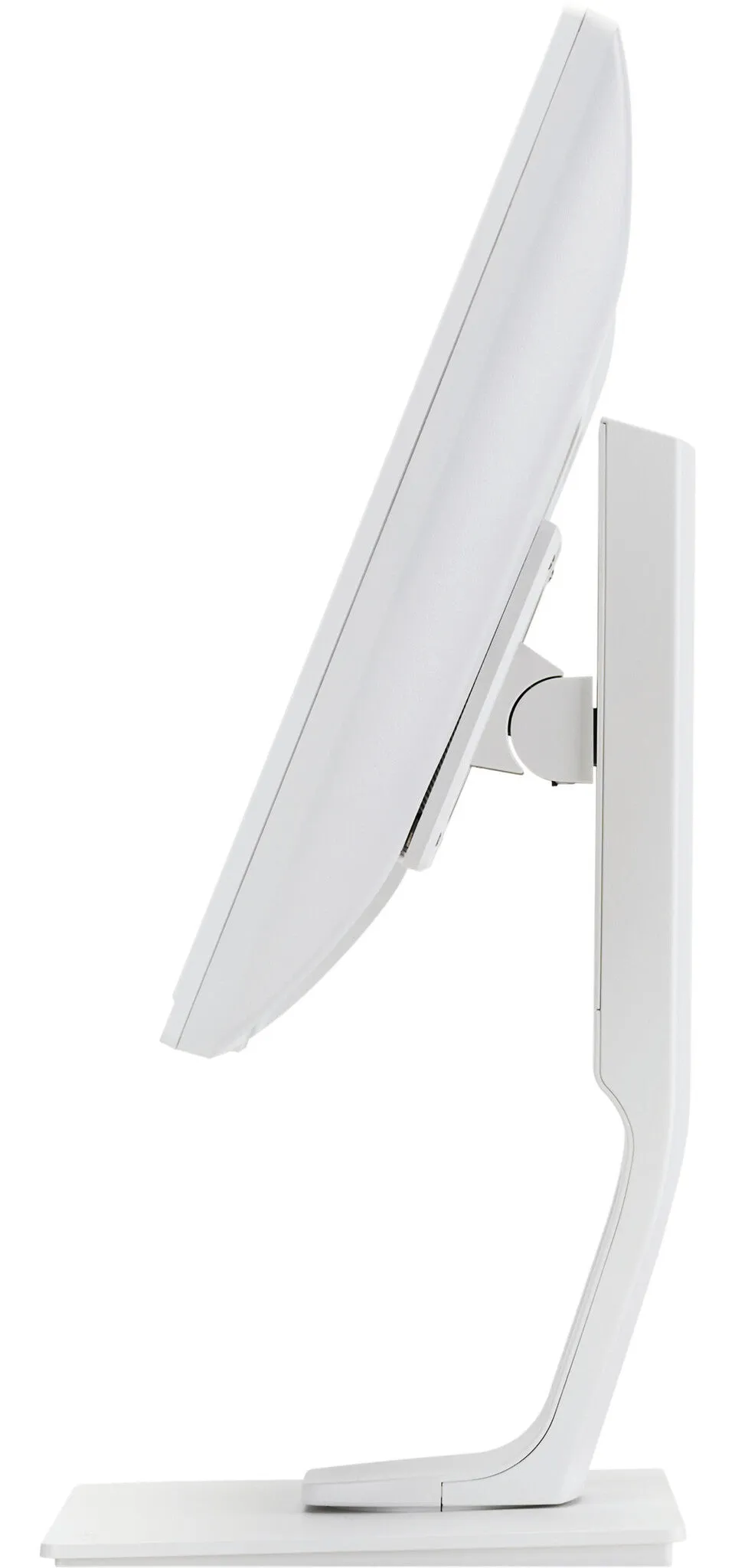

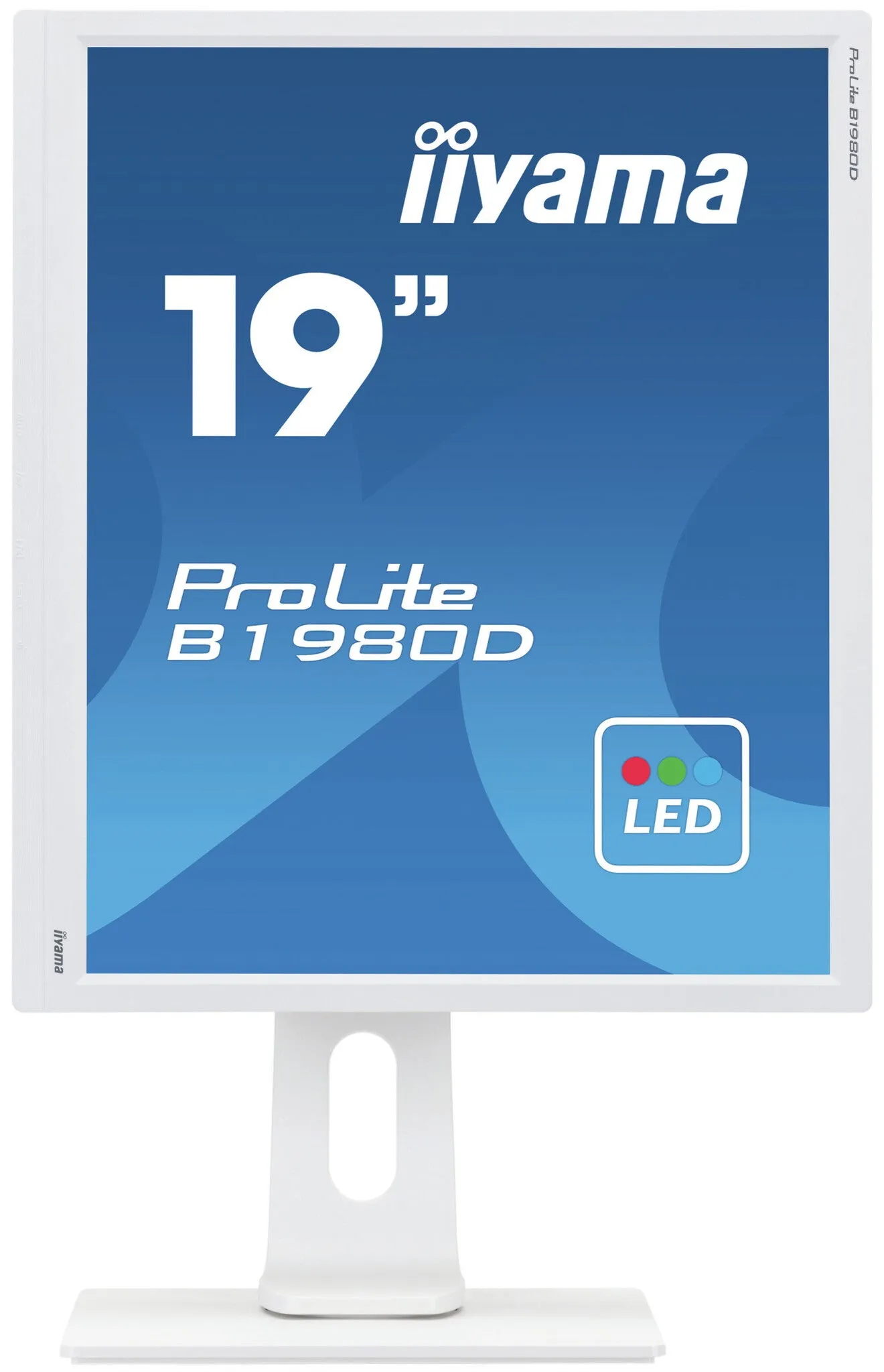

With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.
ACR
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.
VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.
| Display |
|---|
| Display diagonal (metric) | 48 cm |
| Viewable size, vertical | 30.1 cm |
| Viewable size, horizontal | 37.6 cm |
| Horizontal scan range | 24 - 80 kHz |
| Pixel pitch | 0.294 x 0.294 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 160 |
| Viewing angle, horizontal | 170 |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 12000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Display surface | Matt |
| Display technology | LED |
| HD type | SXGA |
| Response time | 5 ms |
| Display brightness (typical) | 250 cd/m |
| Panel type | TN |
| Native aspect ratio | 5:4 |
| Display resolution | 1280 x 1024 pixels |
| Display diagonal | 48.3 cm (19") |
| Performance |
|---|
| Component video sync | Separate sync |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia |
|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design |
|---|
| Feet colour | White |
| Product colour | White |
| Market positioning | Business |
| Ports & interfaces |
|---|
| HDCP | Yes |
| Headphone out | No |
| HDMI | No |
| DVI-D ports quantity | 1 |
| DVI port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Built-in USB hub | No |
| Ergonomics |
|---|
| Tilt adjustment | Yes |
| On Screen Display (OSD) languages | Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Number of OSD languages | 10 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 22 |
| Swivel angle range | 0 - 90 |
| Pivot | Yes |
| Pivot angle | 0 - 90 |
| Swivelling | Yes |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Adjustable height (max) | 13 cm |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power |
|---|
| Input current | 1.5 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 16 W |
| Energy consumption (SDR) per 1000 hours | 15 kWh |
| Energy efficiency class (SDR) | E |
| Operational conditions |
|---|
| Storage relative humidity (H-H) | 5 - 85% |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -20 - 60 C |
| Operating temperature (T-T) | 5 - 35 C |
| Sustainability |
|---|
| European Product Registry for Energy Labelling (EPREL) code | 819352 |
| Sustainability certificates | ENERGY STAR, EPEAT Silver, ErP |
| General |
|---|
| Product family | ProLite |
| Weight & dimensions |
|---|
| Weight (with stand) | 4.9 kg |
| Height (with stand) | 421.5 mm |
| Depth (with stand) | 210 mm |
| Width (with stand) | 411 mm |
| Packaging data |
|---|
| Package weight | 6.7 kg |
| Package height | 677 mm |
| Package depth | 437 mm |
| Package width | 173 mm |
| Quick start guide | Yes |
| Cables included | AC, DVI |
| Stand included | Yes |
| Logistics data |
|---|
| Harmonized System (HS) code | 85285210 |
| Technical details |
|---|
| Compliance certificates | CE, REACH, RoHS, WEEE |
| Other features |
|---|
| Touchscreen | No |
