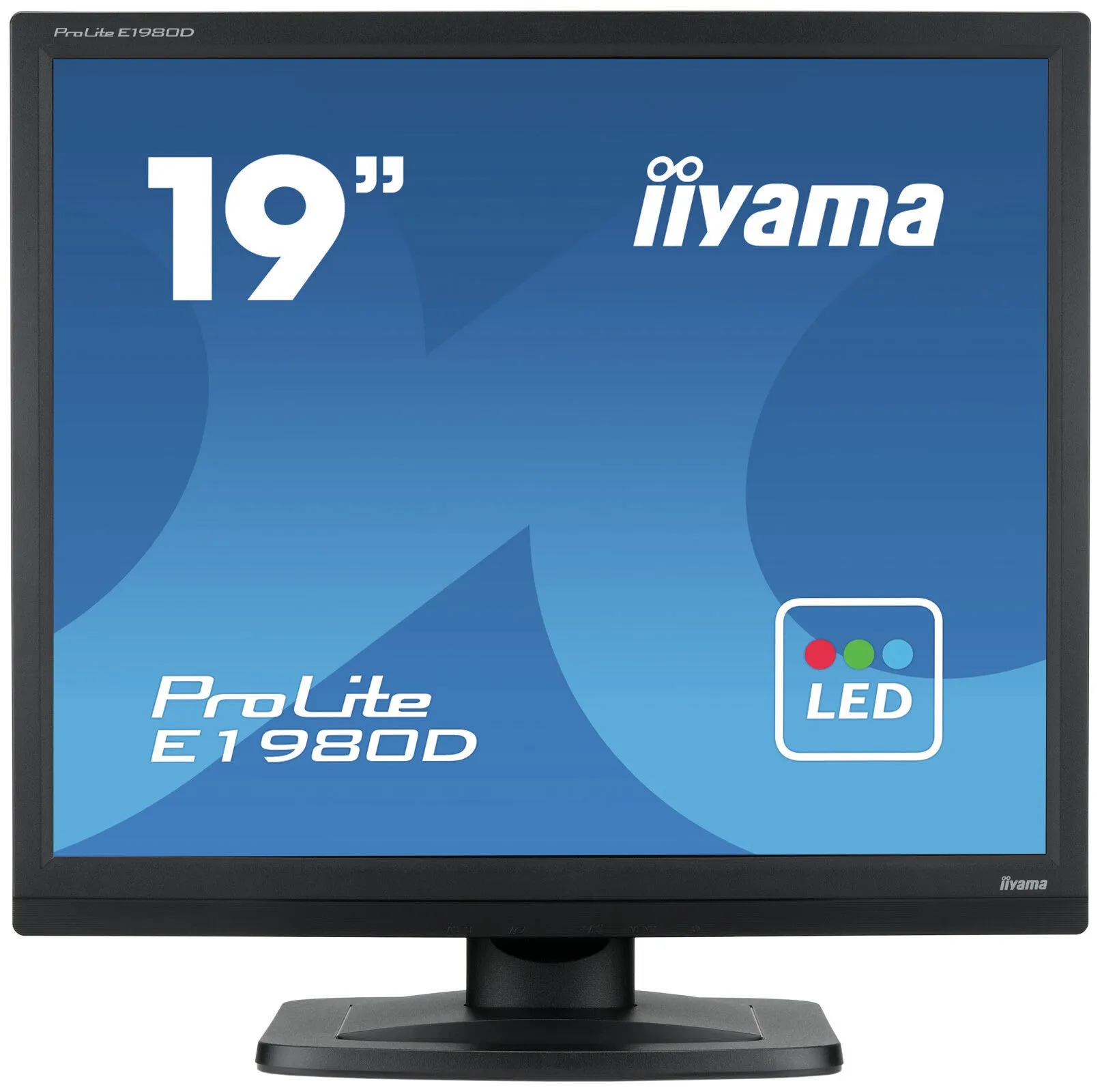

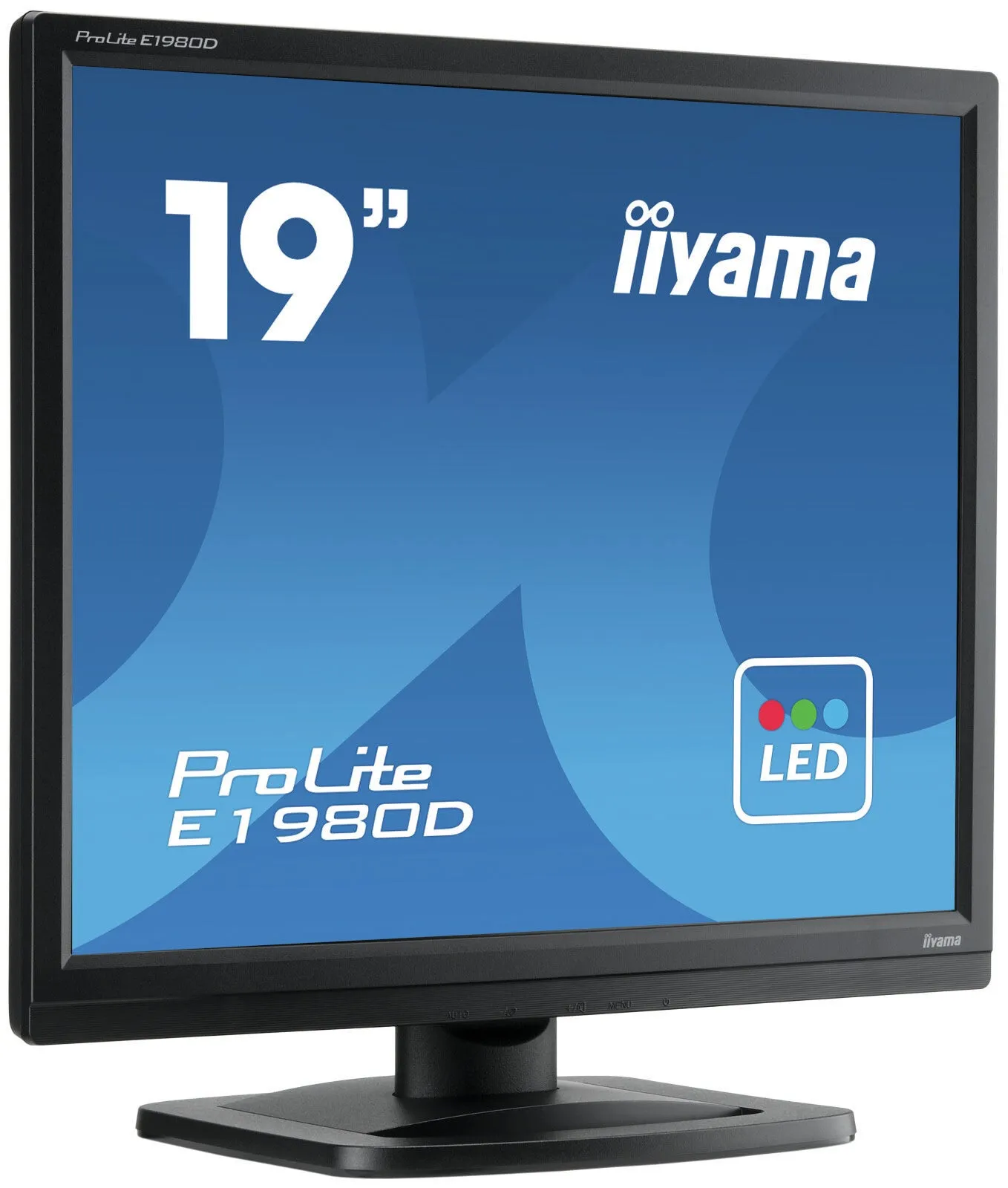

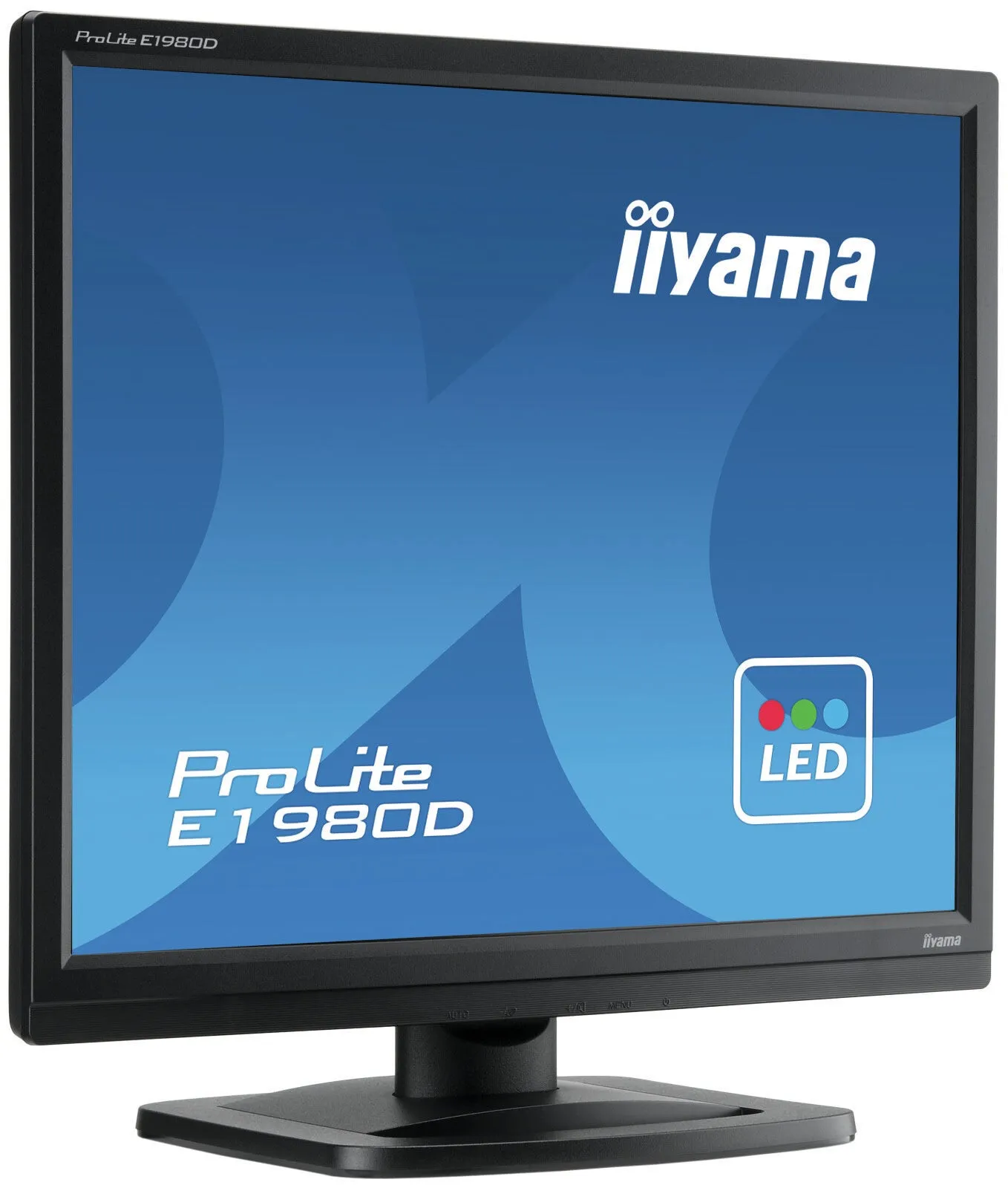

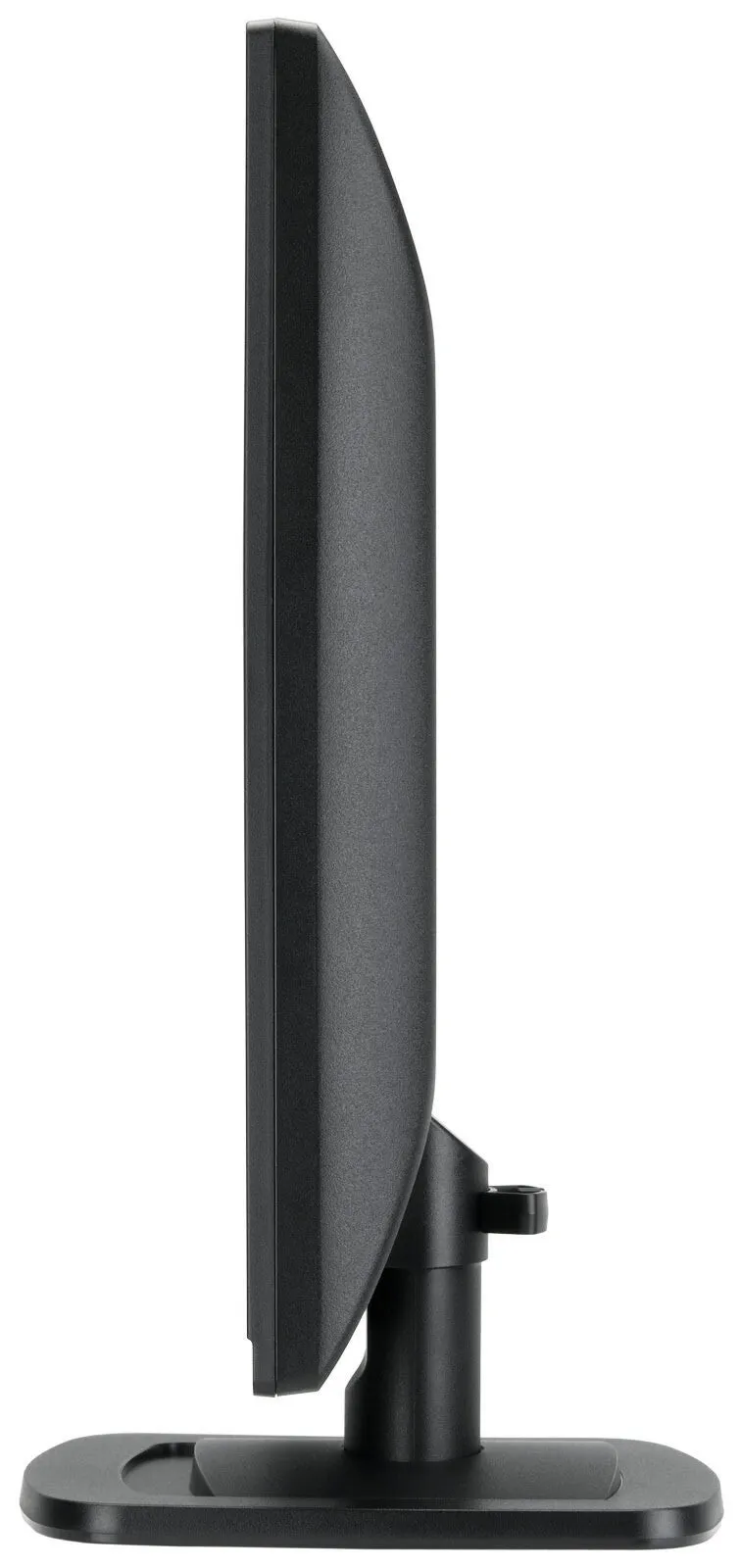

iiyama ProLite E1980D-B1 19" XGA Monitor - 60Hz, 5ms, TN, Black

---

iiyama ProLite E1980D-B1. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, HD type: XGA, Display technology: LED, Display surface: Matt, Response time: 5 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 170, Viewing angle, vertical: 160. VESA mounting. Product colour: Black

Reliable office solution

The 19 Prolite E1980D is an LED-backlit monitor with good response time, high contrast and sRGB and gamma correction functions that permit even the finest nuances of colour to be set accurately.

---

Display
NTSC coverage (typical)	72%
sRGB coverage (typical)	99%
Display diagonal (metric)	48 cm
Viewable size, vertical	30.1 cm
Viewable size, horizontal	37.6 cm
Horizontal scan range	24 - 83 kHz
Pixel pitch	0.294 x 0.294 mm
Display number of colours	16.7 million colours
Viewing angle, vertical	160
Viewing angle, horizontal	170
Maximum refresh rate	60 Hz
Contrast ratio (dynamic)	12000000:1
Contrast ratio (typical)	1000:1
Screen shape	Flat
Display surface	Matt
Display technology	LED
HD type	XGA
Response time	5 ms
Display brightness (typical)	250 cd/m
Panel type	TN
Native aspect ratio	5:4
Display resolution	1280 x 1024 pixels
Display diagonal	48.3 cm (19")

Performance
AMD FreeSync	No
NVIDIA G-SYNC	No

Multimedia
Built-in camera	No
Built-in speaker(s)	No

Design
Feet colour	Black
Product colour	Black
Market positioning	Business

Ports & interfaces
HDCP	Yes
HDMI	No
DVI-D ports quantity	1
DVI port	Yes
VGA (D-Sub) ports quantity	1
Built-in USB hub	No

Ergonomics
Tilt adjustment	Yes
On Screen Display (OSD) languages	German, English, Spanish, French, Italian, Japanese, Portuguese, Russian
Number of OSD languages	9
On Screen Display (OSD)	Yes
Tilt angle range	-4 - 21
Height adjustment	No
Cable lock slot	No
Panel mounting interface	100 x 100 mm
VESA mounting	Yes

Power
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power consumption (off)	0.5 W
Power consumption (standby)	0.5 W
Power consumption (typical)	16 W
Energy consumption (SDR) per 1000 hours	15 kWh
Energy efficiency class (SDR)	E

Operational conditions
Storage relative humidity (H-H)	5 - 85%
Operating relative humidity (H-H)	10 - 80%
Storage temperature (T-T)	-20 - 60 C
Operating temperature (T-T)	5 - 35 C

Sustainability
European Product Registry for Energy Labelling (EPREL) code	819356
Sustainability certificates	ENERGY STAR, EPEAT Silver

General
Product family	ProLite

Weight & dimensions
Weight (with stand)	3.2 kg
Height (with stand)	402 mm
Depth (with stand)	204.5 mm
Width (with stand)	411 mm

Packaging data
Package weight	4.6 kg
Package depth	427 mm
Package width	122 mm
Quick start guide	Yes
Cables included	AC, DVI
Stand included	Yes

Logistics data
Harmonized System (HS) code	85285210

Technical details
Compliance certificates	CE, REACH, RoHS, WEEE

Other features
Touchscreen	No
