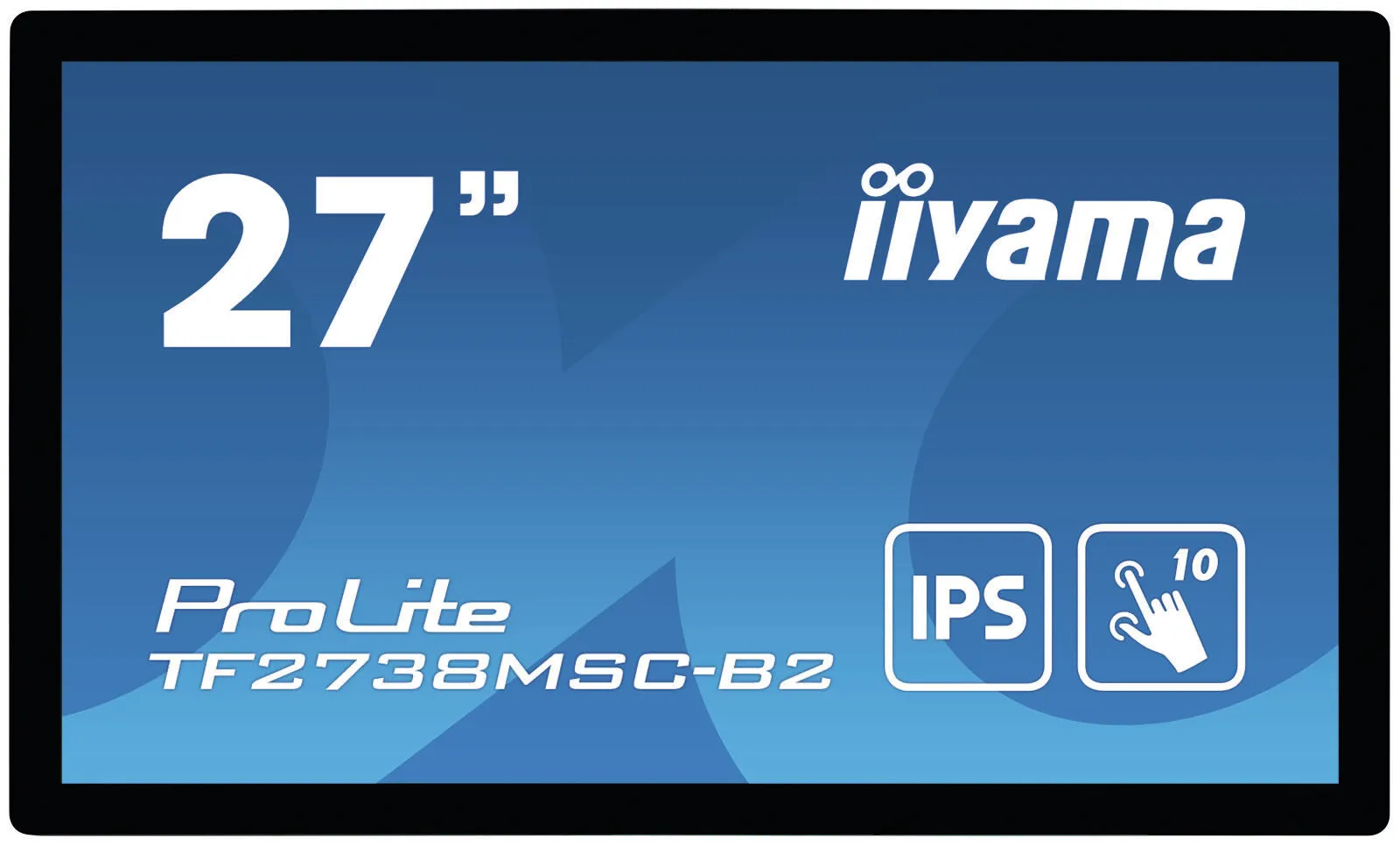

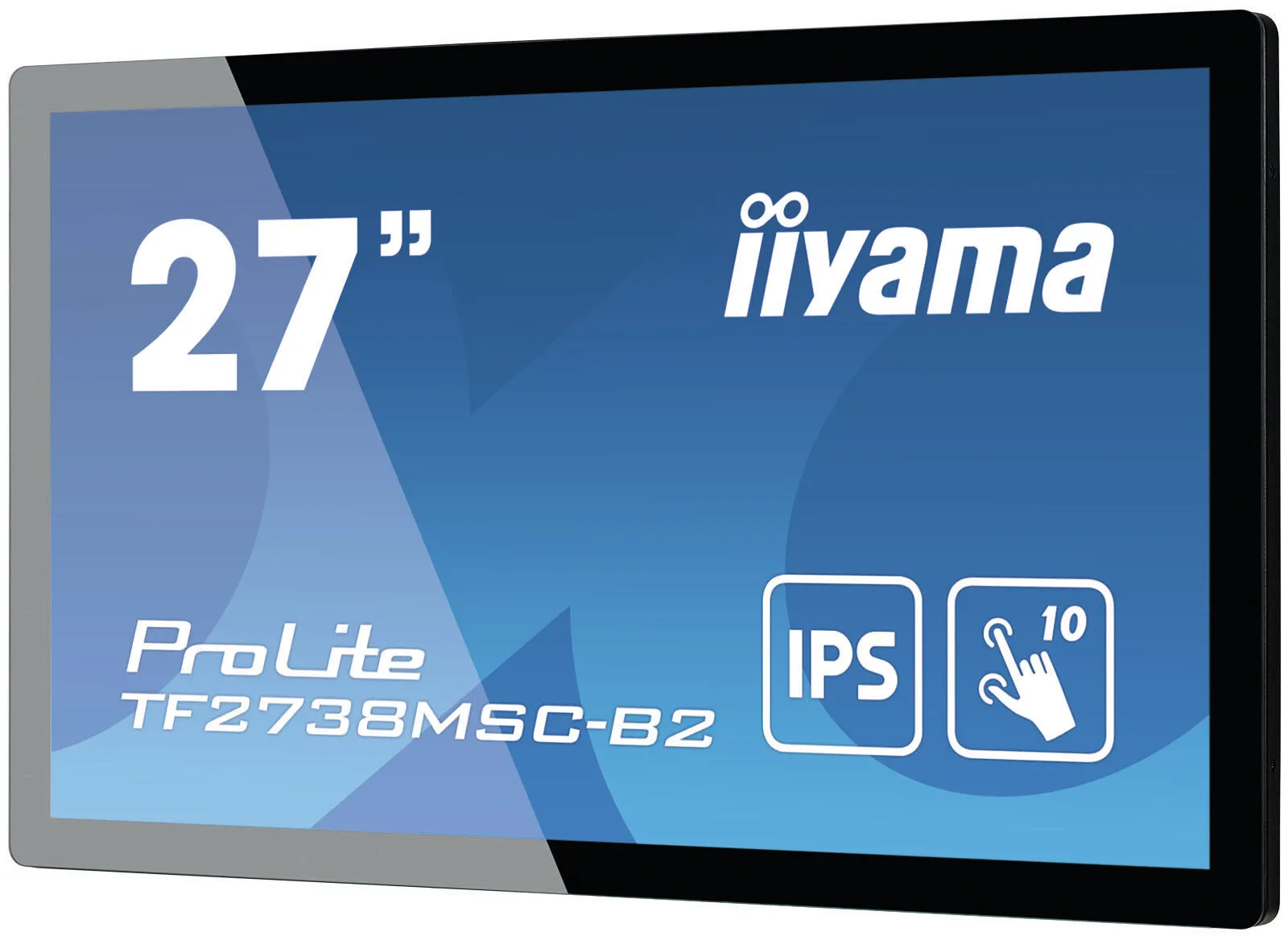

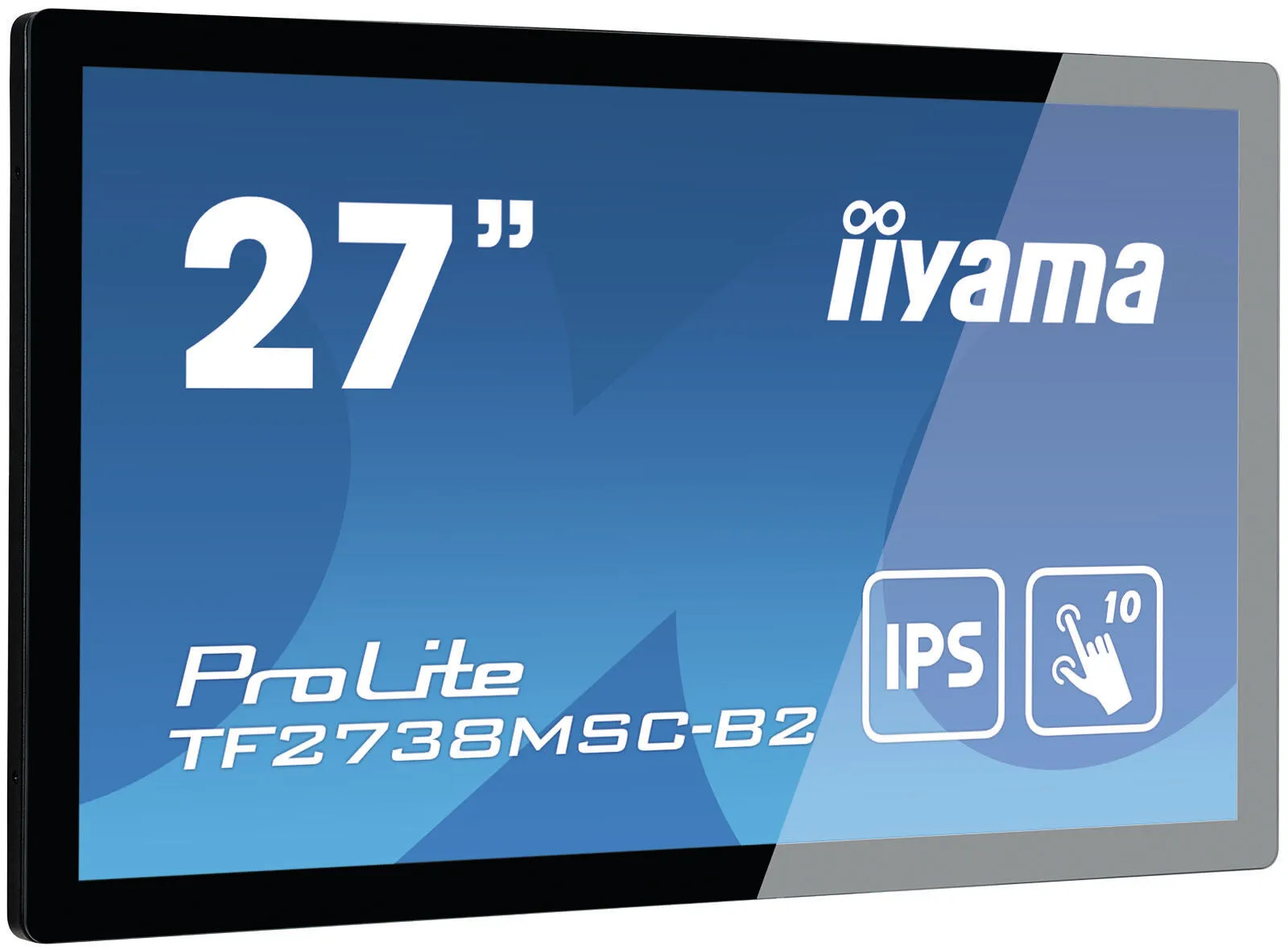

iiyama ProLite TF2738MSC-B2 27" Full HD Monitor - 5ms, IPS, Speakers, Black
iiyama ProLite TF2738MSC-B2. Display diagonal: 68.6 cm (27"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178, Viewing angle, vertical: 178. Built-in speaker(s). Product colour: Black
27 10pt open frame touch monitor with edge-to-edge glass
With 1920x1080 Full HD resolution and Projective Capacitive 10 point touch technology, the ProLite TF2738MSC-B2 delivers seamless and accurate touch response. Featuring IPS LED LCD Screen technology, it offers exceptional colour performance and wide viewing angles. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. In addition, the screen comes with an IPX1 rating, making it water resistant from the front. Equipped with speakers and triple digital input (DVI, HDMI and DisplayPort). The ProLite TF2738MSC-B2 is an ideal screen for kiosk integrators and a perfect solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations.
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
| Display |
|---|
| Surface hardness | 6H |
| Display diagonal (metric) | 68.6 cm |
| Horizontal scan range | 30 - 80 kHz |
| Pixel pitch | 0.311 x 0.311 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178 |
| Viewing angle, horizontal | 178 |
| Contrast ratio (dynamic) | 12000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Display technology | LED |
| HD type | Full HD |
| Response time | 5 ms |
| Display brightness | 500 cd/m |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 68.6 cm (27") |
| Performance |
|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia |
|---|
| RMS rated power | 6 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design |
|---|
| Certification | CE, TV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA |
| Glass thickness | 3.6 mm |
| International Protection (IP) code | IP1X |
| Product colour | Black |
| Ports & interfaces |
|---|
| HDCP | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI port | Yes |
| Ergonomics |
|---|
| On Screen Display (OSD) languages | German, Dutch, English, French, Japanese, Polish, Russian |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Wall mountable | Yes |
| Panel mounting interface | 100 x 100,200 x 100 mm |
| Power |
|---|
| Energy efficiency scale | A to G |
| Power supply type | AC |
| AC input frequency | 50 Hz |
| AC input voltage | 100-240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 25 W |
| Energy consumption (SDR) per 1000 hours | 24 kWh |
| Energy efficiency class (SDR) | F |
| Sustainability |
|---|
| European Product Registry for Energy Labelling (EPREL) code | 426849 |
| Sustainability certificates | ErP |
| General |
|---|
| Product family | ProLite |
| Weight & dimensions |
|---|
| Weight (without stand) | 8.3 kg |
| Height (without stand) | 386.5 mm |
| Depth (without stand) | 52 mm |
| Width (without stand) | 648.5 mm |
| Packaging data |
|---|
| Package weight | 9.4 kg |
| Package height | 500 mm |
| Package depth | 123 mm |
| Package width | 746 mm |
| Cables included | AC, DisplayPort, DisplayPort to Mini DisplayPort, HDMI, USB |
| Logistics data |
|---|
| Harmonized System (HS) code | 85285210 |
| Technical details |
|---|
| Compliance certificates | CE, REACH, RoHS |
| Other features |
|---|
| Bezel width | 2.4 cm |
| Number of simultaneous touchpoints | 10 |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Placement supported | Horizontal/Vertical |
| Display viewable area (HxV) | 597.6 x 336.2 mm |
