MR8300, AC2200, MU-MIMO, 2.4 5 5 GHz, 802.11a/b/g/n/ac, USB 3.0, WAN, LAN, 512MB RAM, 256MB Flash, 213.7x161.8x54.8 mm
Linksys MR8300. WAN connection type: RJ-45. Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 2134 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Security algorithms: 128-bit AES, WPA2. Product type: Tabletop router, Product colour: Black, LED indicators: LAN, USB
An Entertainment PowerhouseNow with Mesh WiFi
Upgrade your home WiFi and get extremely fast wireless speeds with the Linksys Max-Stream AC2200 MU-MIMO Tri-Band WiFi Router (MR8300). Perfect for households that thrive on entertainment, this Tri-Band router delivers superior speeds of up to 2.2 Gbps throughout your home. The MR8300 delivers a dedicated signal to each connected device using MU-MIMO technology, so the entire family can enjoy simultaneous 4K streaming, online gaming, and more. Its also future-proof thanks to built-in Mesh WiFi technology: simply add a Velop Mesh WiFi node to expand coverage in any area of your home.
Superfast WiFi for All of Your Connected Devices
Using Tri-Band and MU-MIMO (Multi-User Multiple-Input Multiple-Output) technology, the MR8300 delivers high-speed WiFi to multiple devices simultaneously. Youll be able to stream 4K media, browse the Internet, and play games online as if each of your devices had its own, dedicated WiFi router.
WiFi Coverage for Every Area of Your Home
With built-in Mesh WiFi, this router is designed to scale to your households WiFi needs. As your WiFi needs grow, simply add a Linksys Velop node to expand your coverage. Velop nodes all work seamlessly together with the MR8300, so there's no need to manually switch between networks.
Easy Setup
Simply connect your router to your modem, download the Linksys app, name your network and choose a password.
Multiple Ethernet Ports Offer Versatile Connectivity
Equipped with four Gigabit Ethernet ports, the MR8300 supports wired connections up to 10x faster than standard Ethernet and allows you to easily connect shared storage devices, printers, and other supported peripherals to your network.
Linksys Auto Firmware Upgrade
Your MR8300 will automatically receive firmware updates from Linksys as they are released, so your router is always secure and up to date.
Customize and Manage Your Home WiFi Anytime, Anywhere
With the Linksys App, you can closely monitor and manage your home WiFi remotely using a smartphone or tablet.
- Guest Access: Create a separate, password-protected WiFi network for up to 50 guests and easily share the password.
- Parental Controls: Ensure a safe Internet experience for your kids -- even when you're away from home. Restrict access to inappropriate or distracting content, control usage, and block specific devices from accessing the Internet.
- Device Prioritization: You can prioritize devices that need the most speed.
- Speed Test: Easily test and monitor your Internet connection's speed.
| WAN connection |
|---|
| WAN connection type | RJ-45 |
| 3G/4G USB modem compatibility | No |
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Wireless LAN features |
|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 2134 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Network |
|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ports & interfaces |
|---|
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB port | Yes |

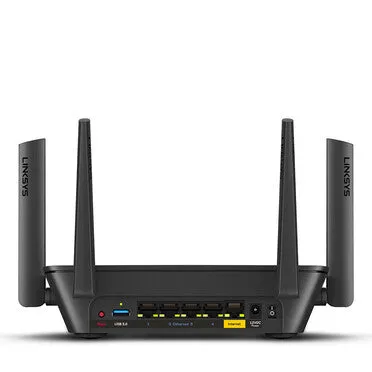

| Ethernet LAN (RJ-45) ports | 4 |
| Management features |
|---|
| WPS push button | Yes |
| Reset button | Yes |
| Web-based management | Yes |
| Security |
|---|
| Security algorithms | 128-bit AES, WPA2 |
| Design |
|---|
| On/off switch | Yes |
| LED indicators | LAN, USB |
| Product colour | Black |
| Product type | Tabletop router |
| Antenna |
|---|
| Antennas quantity | 4 |
| Antenna design | External |
| Features |
|---|
| Certification | FCC |
| Firmware upgradeable | Yes |
| Harmonized System (HS) code | 85176990 |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Processor cores | 4 |
| Processor frequency | 716 MHz |
| Built-in processor | Yes |
| Power |
|---|
| Output current | 2 A |
| Output voltage | 12 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power source type | AC |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 C |
| Storage temperature (T-T) | -20 - 60 C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions |
|---|
| Width | 161.8 mm |
| Depth | 213.7 mm |
| Height | 54.8 mm |
| Weight | 608 g |
| Packaging data |
|---|
| Number of products included | 1 pc(s) |
