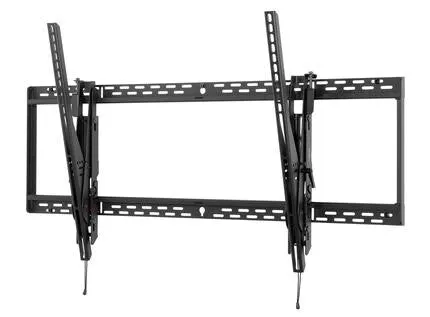

SmartMount Universal Tilt Wall Mount for 60" to 98" Flat Panel Displays
Peerless ST680P. Maximum weight capacity: 159 kg, Minimum screen size: 152.4 cm (60"), Maximum screen size: 2.49 m (98"). Tilt angle range: -5 - 15°, Distance to the wall (min): 8.6 cm, Distance to the wall (max): 26.9 cm. Product colour: Black
Impressive installations of large to extra large flat panel displays are made simple with the ST680. Attach the pre-tensioned universal display adaptors to the display, mount the wall plate anywhere on the wall and attach the easy-glide display adaptors to the wall plate. The wall plate holds displays weighing up to 35lb while featuring junction box access ports and horizontal display adjustment up to 12" for ideal display positioning. Its exclusive pre-tensioned display adaptor design offers quick and easy tilt viewing angle adjustment, enabling putting the final touches on the installation to be increasingly fast and simple.
| Mounting |
|---|
| Number of displays supported | 1 |
| Mounting type | Wall |
| Maximum screen size | 2.49 m (98") |
| Minimum screen size | 152.4 cm (60") |
| Maximum weight capacity | 159 kg |
| Ergonomics |
|---|
| Distance to the wall (min) | 8.6 cm |
| Distance to the wall (max) | 26.9 cm |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 15° |
| Design |
|---|
| Certification | RoHS, UL |
| Compatibility | LCD/Plasma |
| Product colour | Black |
| Packaging content |
|---|
| Manual | Yes |
| Mounting kit | Yes |
| Weight & dimensions |
|---|
| Weight | 8.7 kg |
| Height | 673 mm |
| Depth (max) | 26.9 cm |
| Depth (min) | 8.6 cm |
| Width | 1162 mm |
| Packaging data |
|---|
| Package weight | 10 kg |
| Package height | 120 mm |
| Package depth | 390 mm |
| Package width | 1185 mm |
| Logistics data |
|---|
| Harmonized System (HS) code | 85299097 |
| Other features |
|---|
| Screen size compatibility | 1549.4 - 2590.8 mm (61 - 102") |
