Product Details
＋

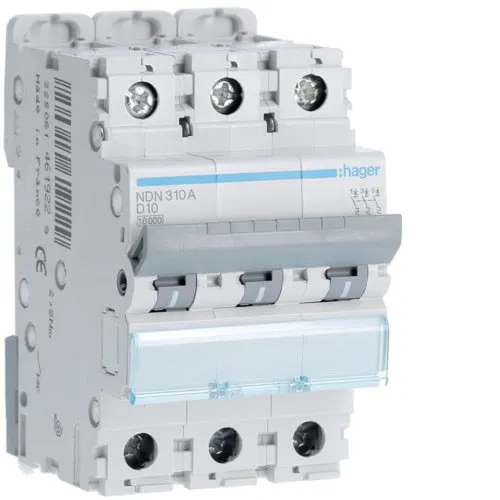

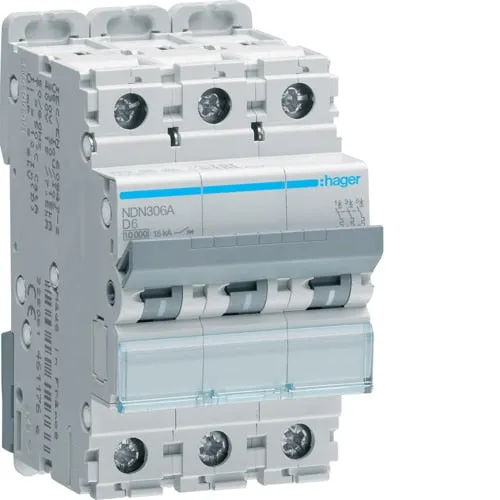

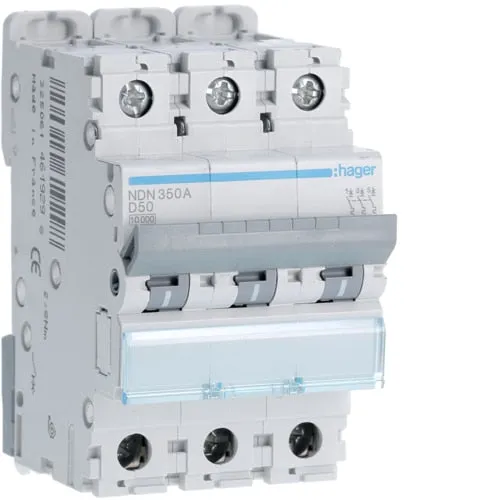

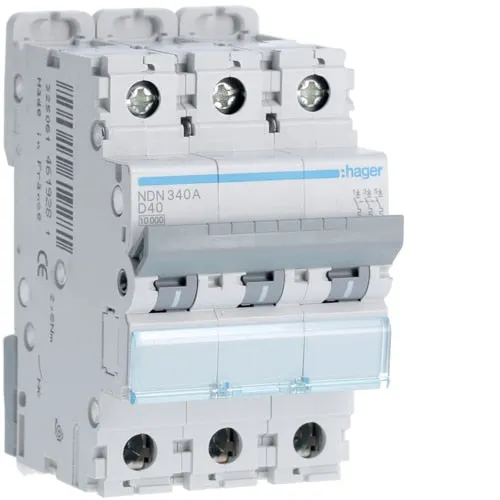

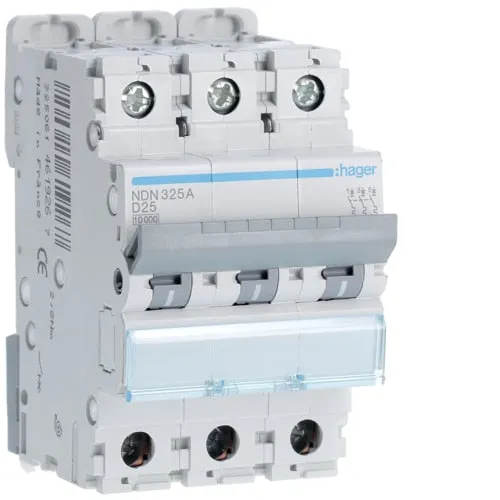

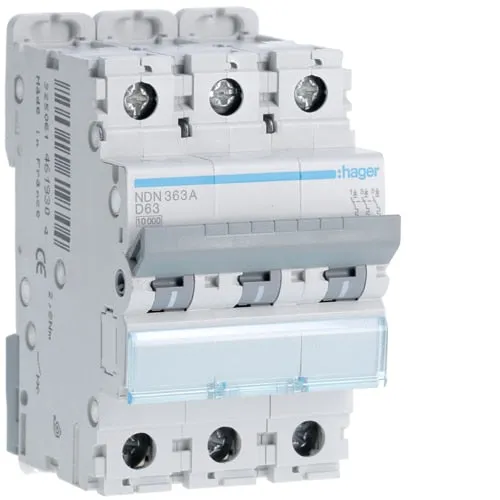

*Please note 1st image is of the 6A version* Hager Triple Pole 10kA D Curve MCB ranges from 6a - 63a, Select your option from the dropdown. The hager MCBs ensure the protection of circuits against short circuits and against overload current.
Architecture
- Neutral positionwithout neutral
- Number of poles3 P
- Type of pole3 P
- CurveD
Main electrical features
- Rated operational voltage Ue400 V
- Type of supply voltageAC
Voltage
- Rated insulation voltage500 V
- Rated impulse withstand voltage6000 V
Electric current
- Rated service breaking capacity Ics AC according IEC 60898-17.5 kA
- Rated service breaking capacity Ics under 400V AC according IEC 60947-27.5 kA
- Rated short circuit breaking capacity Icn under 230V AC according IEC60898-110 kA
Electric current / temperature
- Rating current 30°C6 A - 63 A
Dimensions
- Depth of installed product70 mm
- Height of installed product83 mm
- Width of installed product52.5 mm
Power
- Total power loss under IN4.06 W
Endurance
- Electric endurance in number of cycles4000
- Number of mechanical operations20000
Installation, mounting
- Tightening torque2,8Nm
Equipment
- Can be accessorizedYes
Standards
- Standard textEN 60898-1 ; IEC 60947-2
- European directive WEEEconcerned
Safety
- Protection index IPIP20
