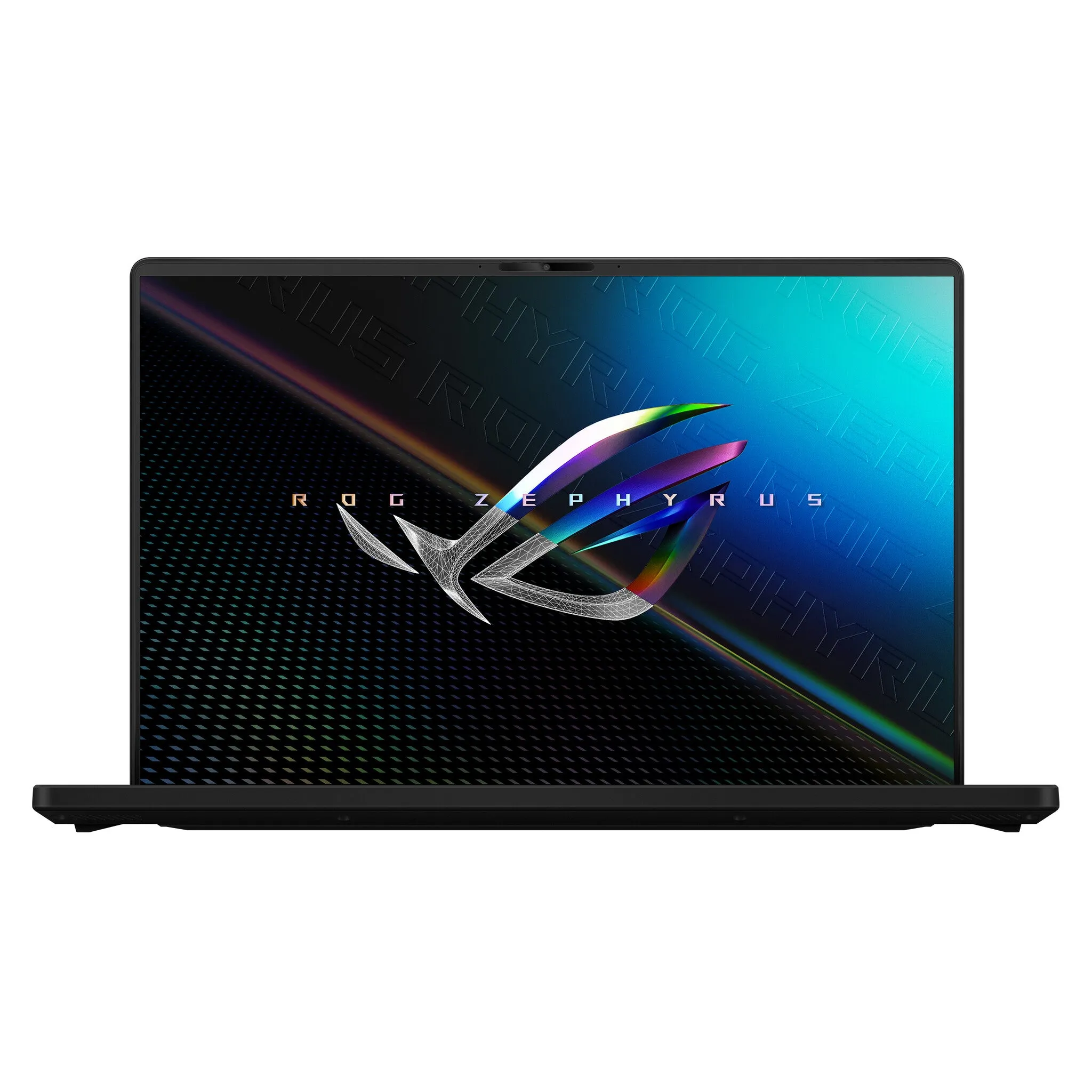

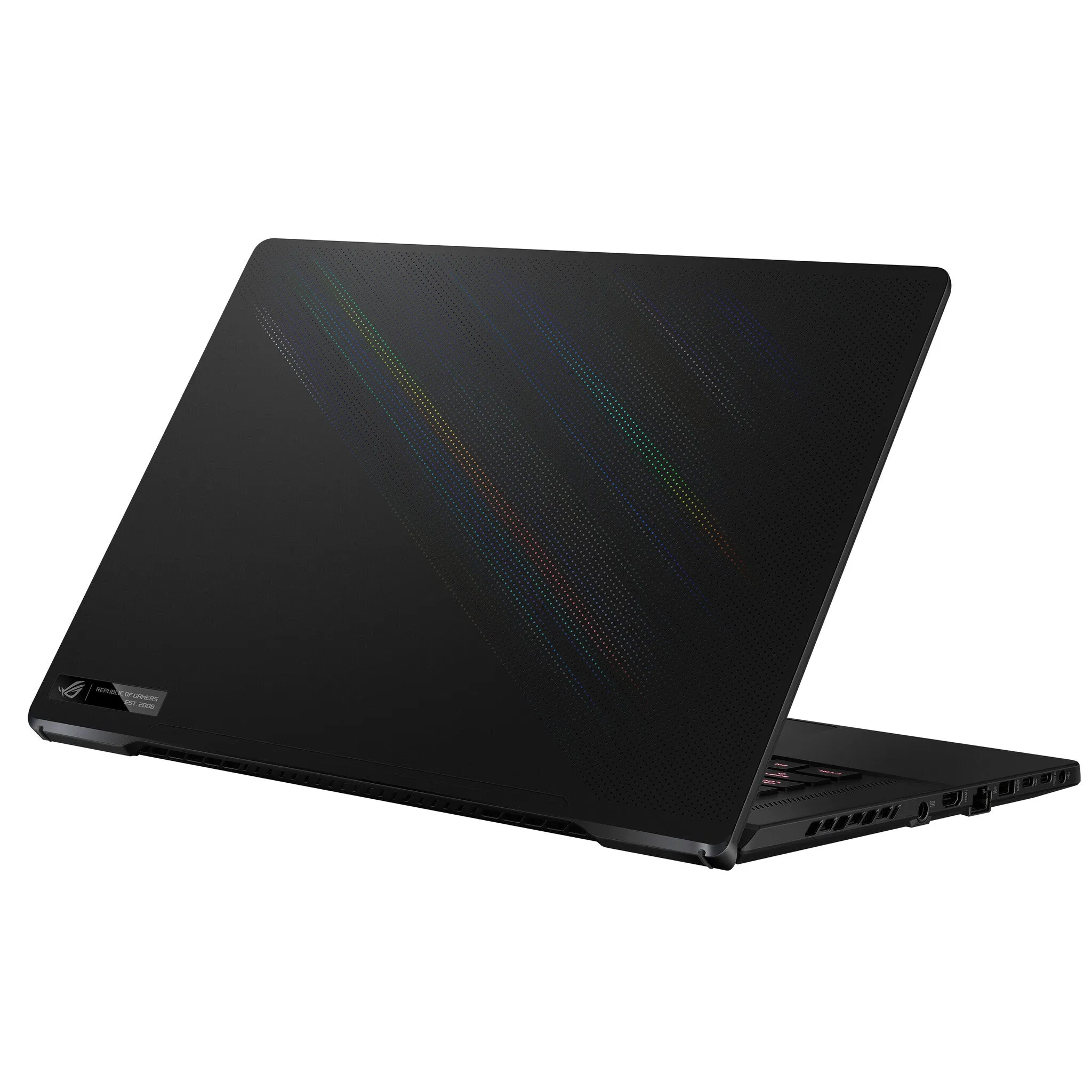

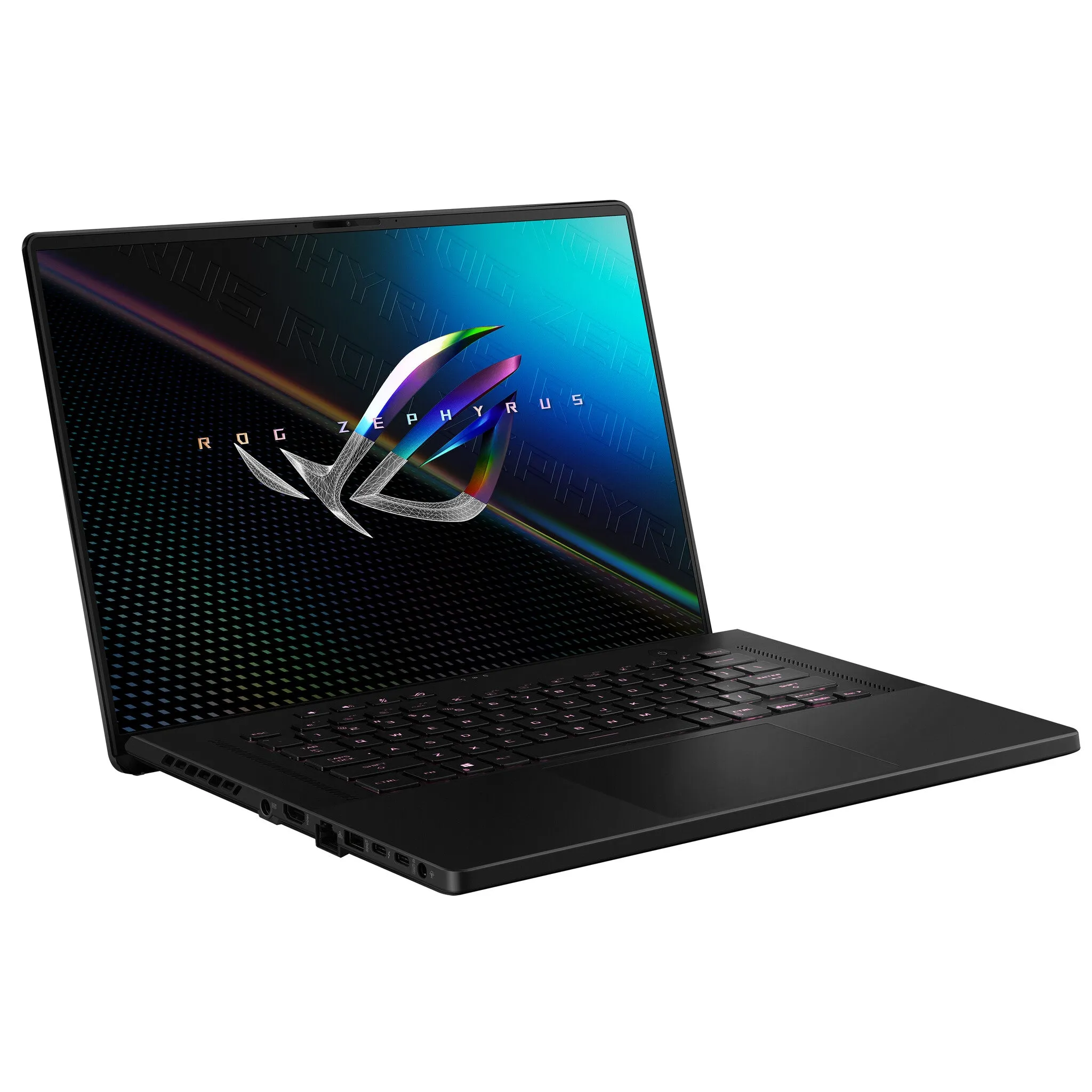

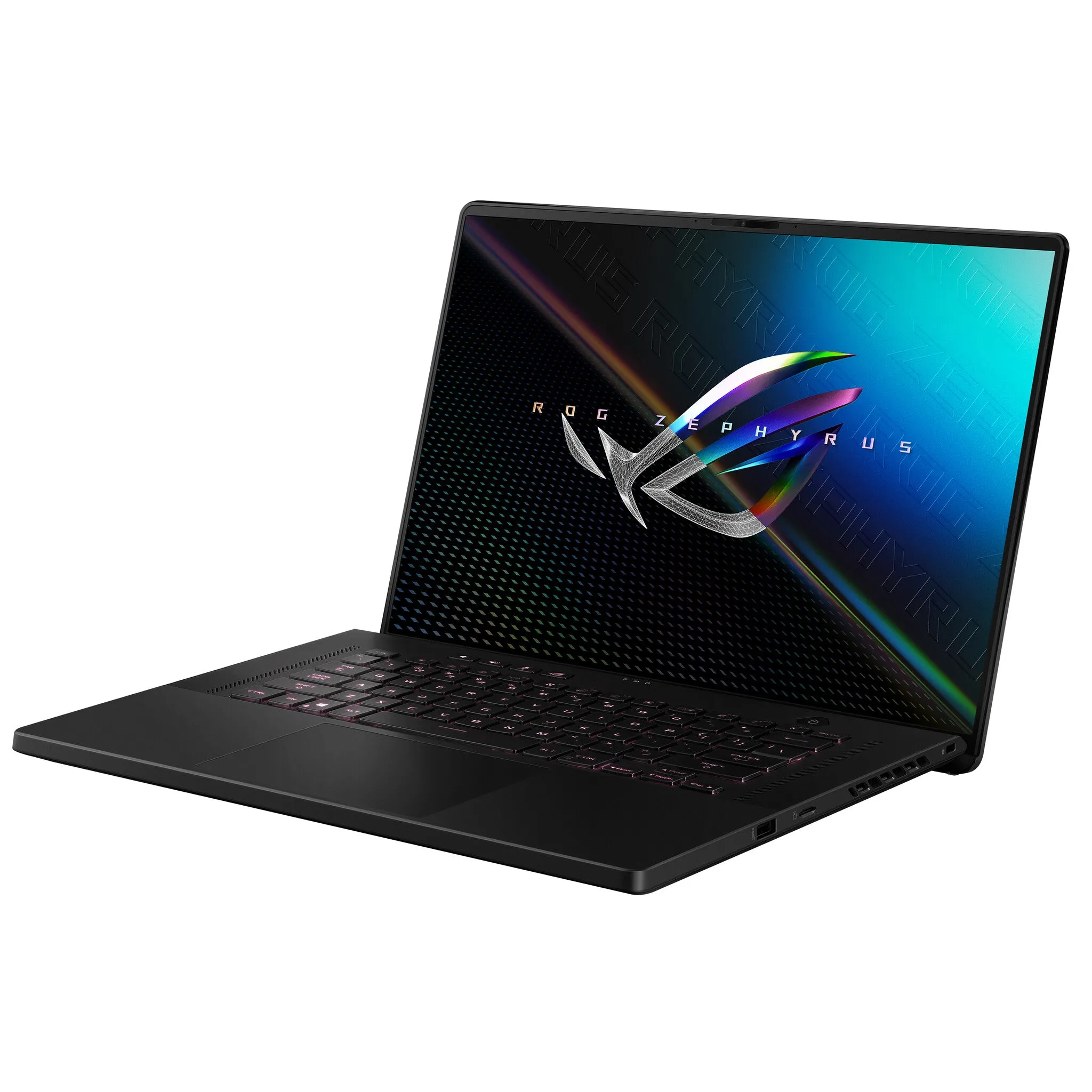

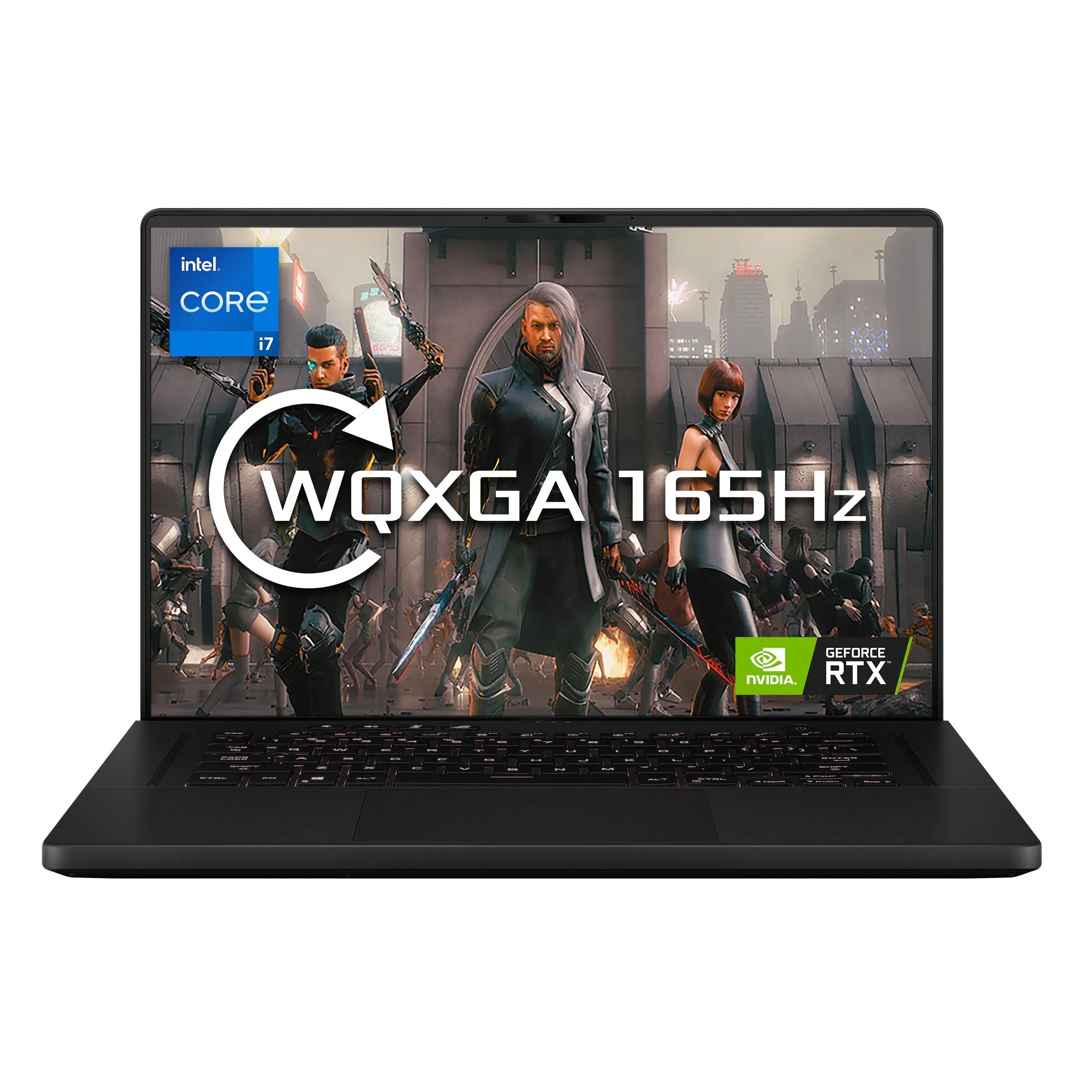

ASUS ROG Zephyrus M16 GU603ZM-K8006W 16" Laptop - Intel Core i7-12700H, 16GB RAM, 1TB SSD, WQXGA, NVIDIA GeForce RTX 3060, Windows 11 Home, Black
ASUS ROG Zephyrus M16 GU603ZM-K8006W. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core i7, Processor model: i7-12700H. Display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics, Discrete graphics card model: NVIDIA GeForce RTX 3060. Operating system installed: Windows 11 Home. Product colour: Black
Outperform Everyone
Speed, power, and portability achieve a perfect balance in the all-new 2022 Zephyrus M16. Its ultra-slim frame houses a powerful 12th Gen Intel Core i9-12900H CPU with NVIDIA GeForce RTX 3080 Ti Laptop GPU. With up to 48GB of DDR5 4800MHz RAM and up to 2TB of ultrafast PCIe 4.0 storage, everyday work and multitasking is faster. Lightning-fast load times for demanding apps makes gaming and content creation speedier than ever.
| Design |
|---|
| Country of origin | China |
| Market positioning | Gaming |
| Introduction year | 2022 |
| Form factor | Clamshell |
| Colour name | Off Black |
| Product colour | Black |
| Product type | Laptop |
| Display |
|---|
| Contrast ratio (typical) | 1200:1 |
| Maximum refresh rate | 165 Hz |
| Display response rise/fall | 3 ms |
| Colour gamut | 100% |
| RGB colour space | DCI-P3 |
| Display brightness | 500 cd/m |
| Anti-glare screen | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WQXGA |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor |
|---|
| Configurable TDP-down | 35 W |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Processor model | i7-12700H |
| Processor generation | 12th gen Intel Core i7 |
| Processor family | Intel Core i7 |
| Processor manufacturer | Intel |
| Memory |
|---|
| Maximum internal memory | 40 GB |
| Memory slots | 1x SO-DIMM |
| Memory form factor | On-board SO-DIMM |
| Memory clock speed | 4800 MHz |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage |
|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express 4.0 |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics |
|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 6 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA GeForce RTX 3060 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio |
|---|
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 4 |
| Audio system | Dolby Atmos |
| Camera |
|---|
| Infrared (IR) camera | Yes |
| Front camera HD type | HD |
| Front camera | Yes |
| Network |
|---|
| Bluetooth version | 5.2 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet LAN | Yes |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Bluetooth | Yes |

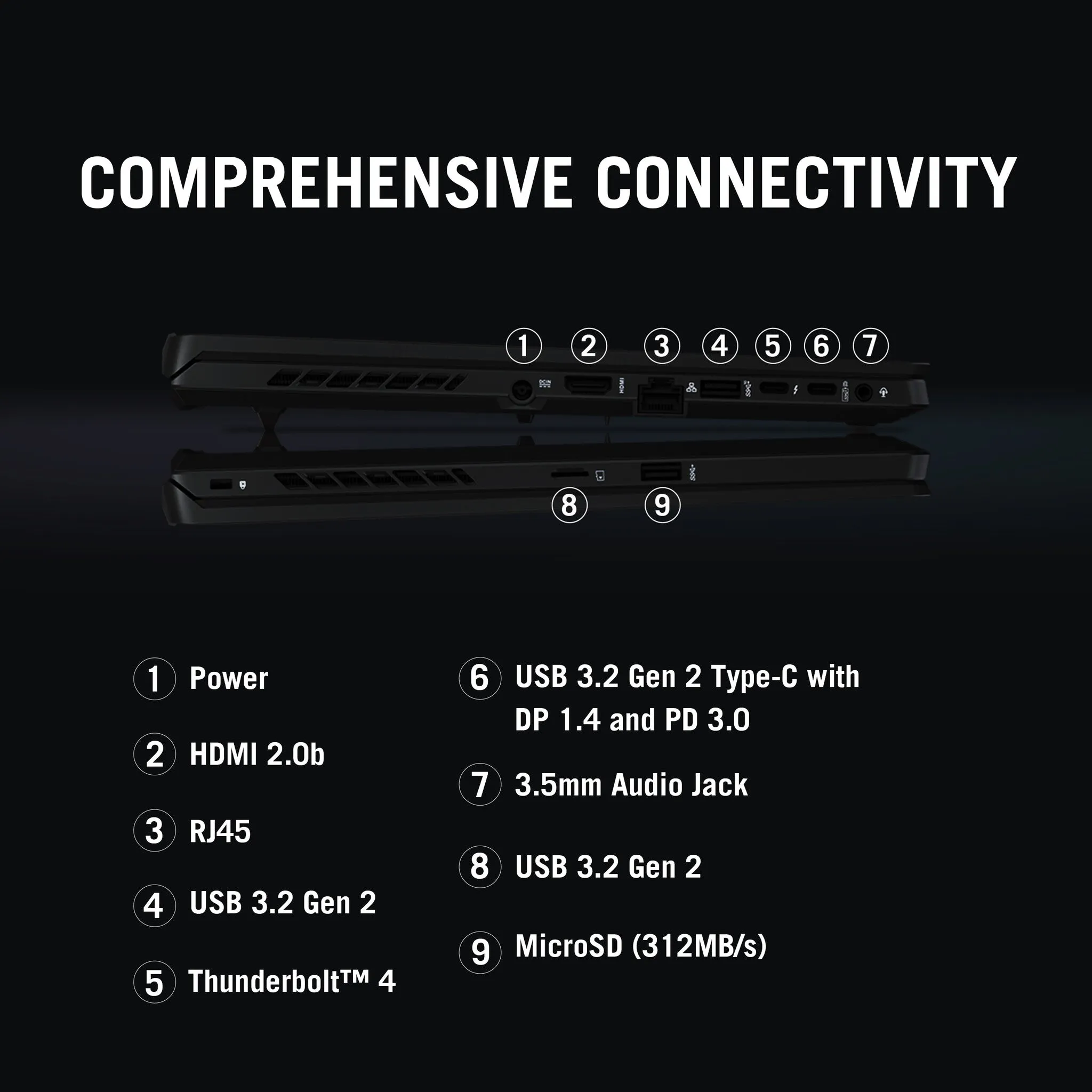

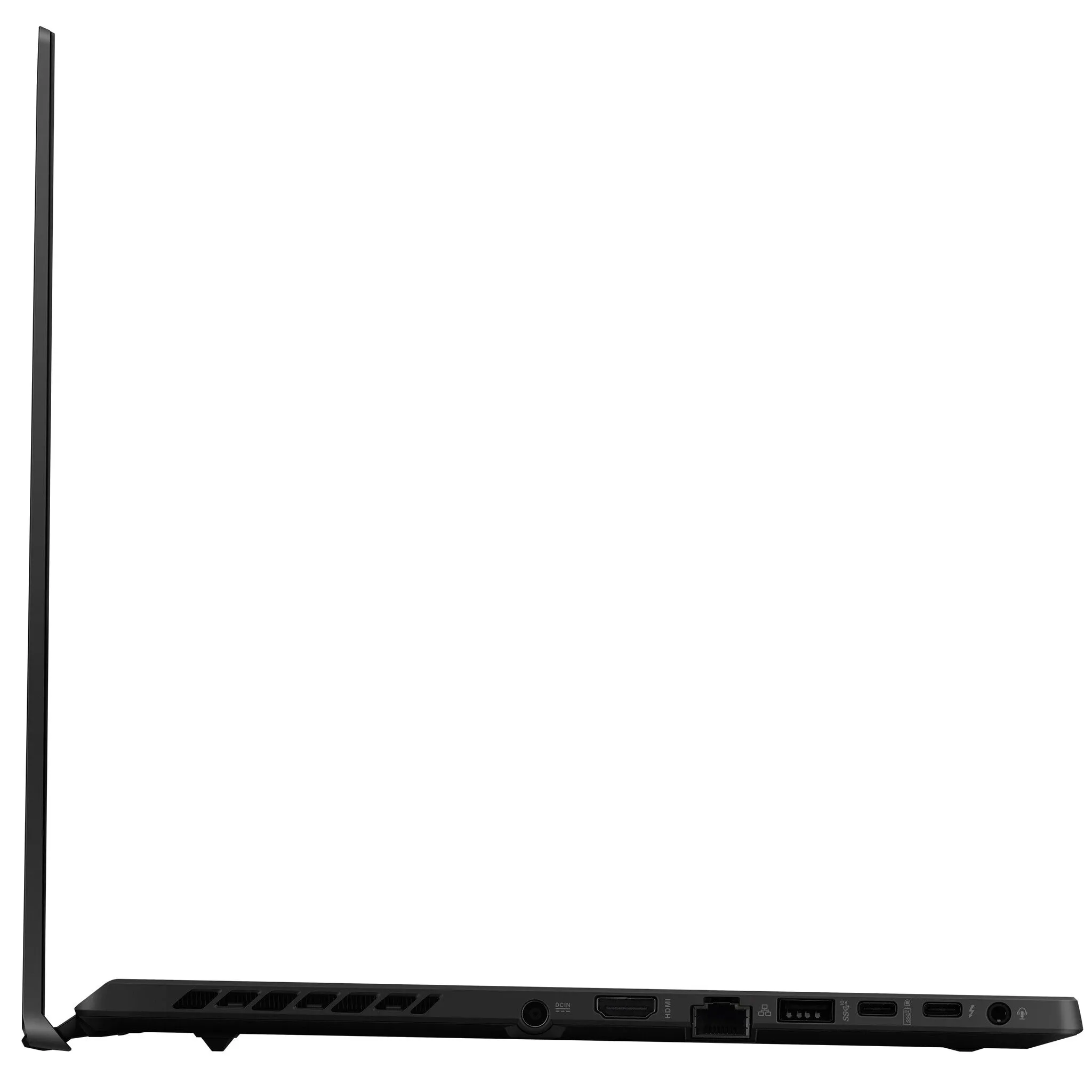

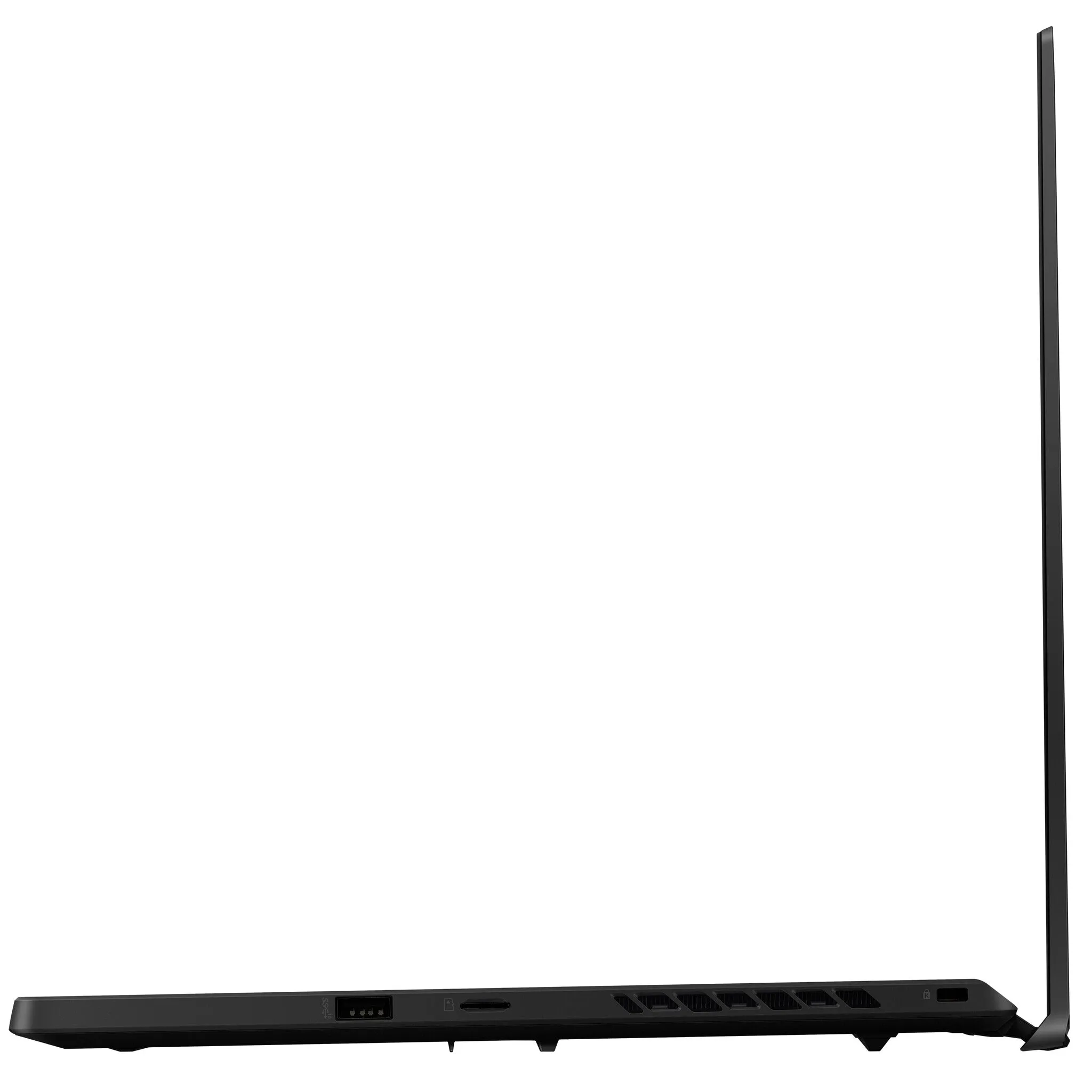

| Ports & interfaces |
|---|
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Intel Thunderbolt 4 | Yes |
| HDMI version | 2.0b |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt technology | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |

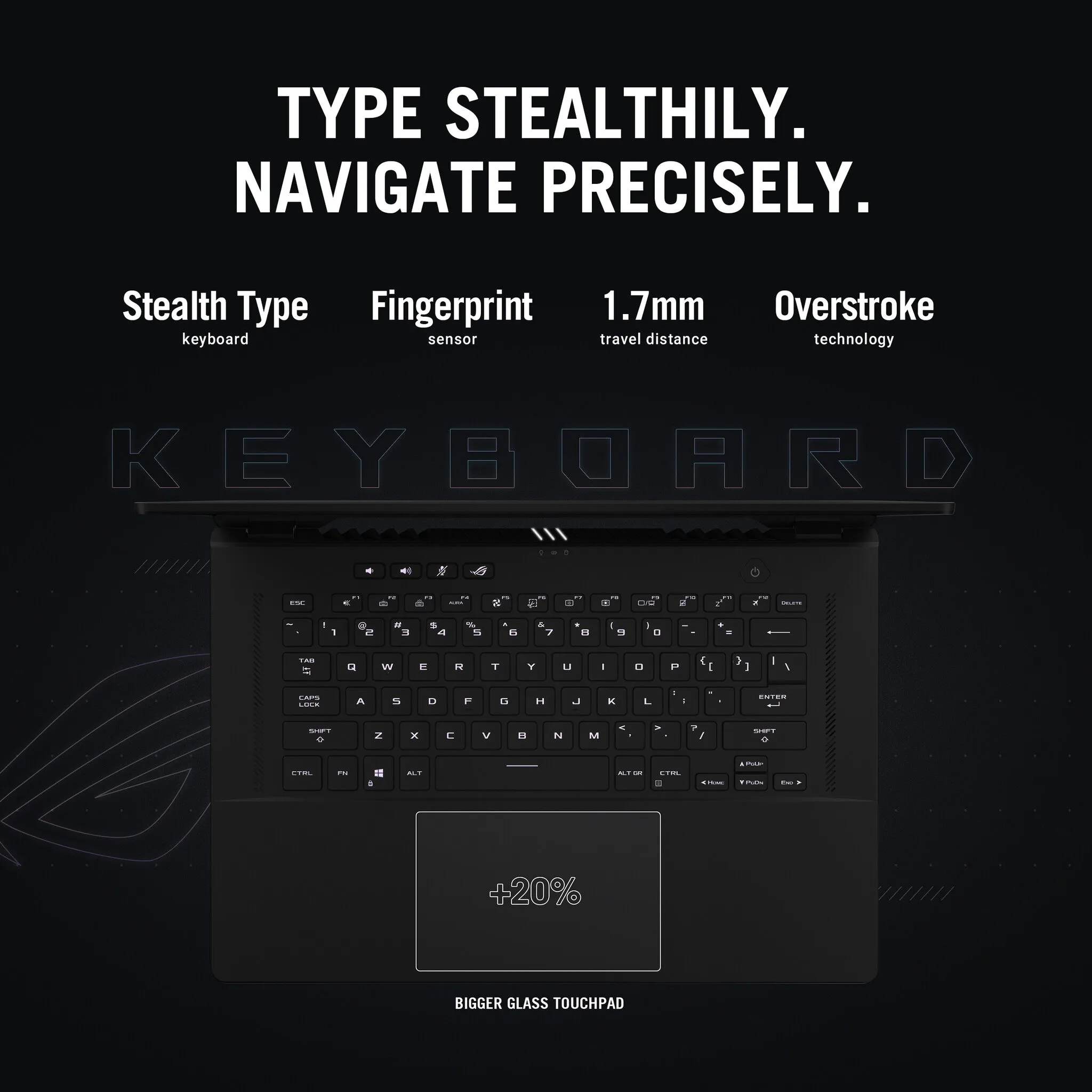

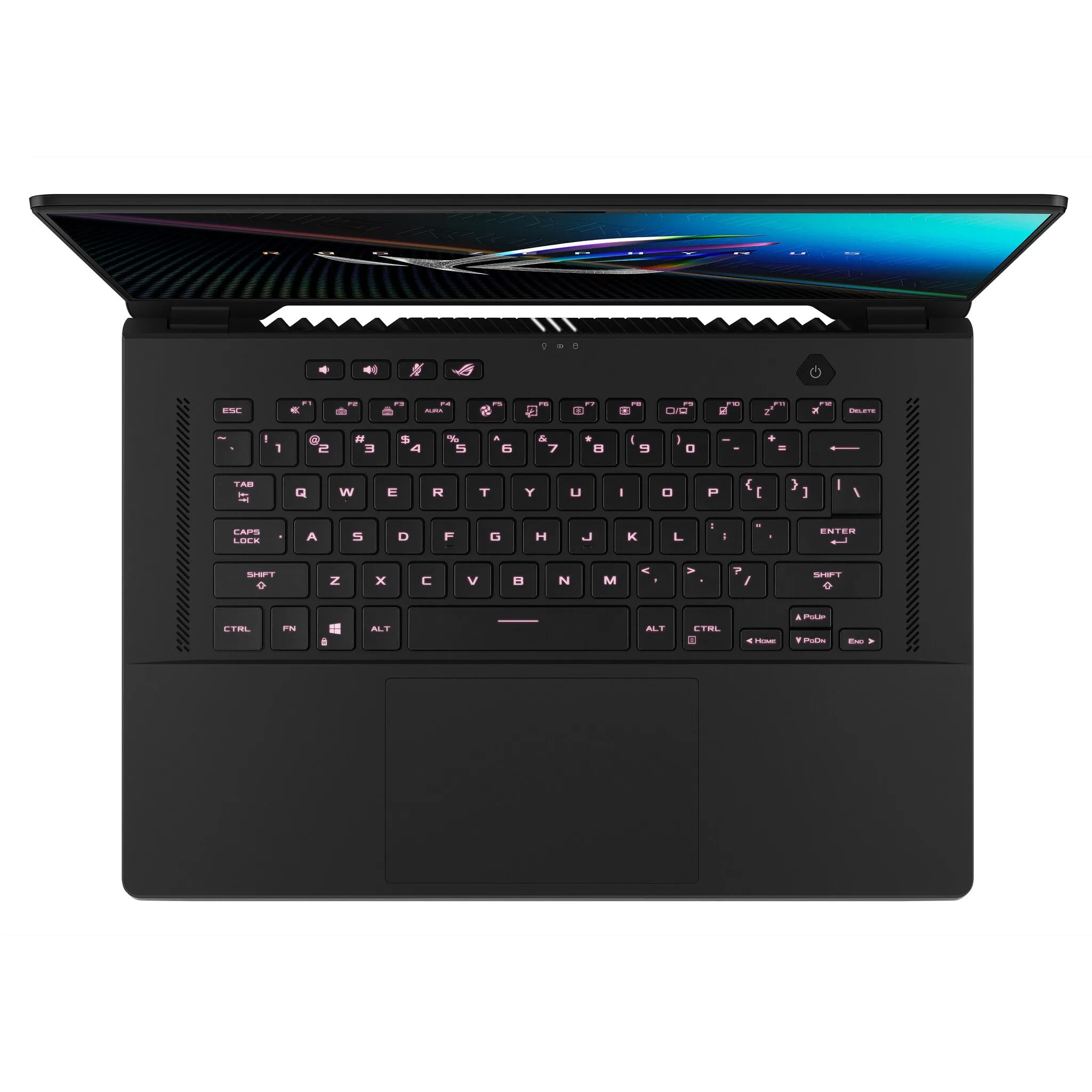

| Keyboard |
|---|
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Pointing device | Touchpad |
| Software |
|---|
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required. |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Home |
| Processor special features |
|---|
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| CPU configuration (max) | 1 |
| Battery |
|---|
| Battery capacity (Watt-hours) | 90 Wh |
| Number of battery cells | 4 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power |
|---|
| AC adapter output voltage | 20 V |
| AC adapter output current | 12 A |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter power | 240 W |
| Security |
|---|
| Password protection type | BIOS, User |
| Password protection | Yes |
| Windows Hello | Yes |
| Face recognition | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Weight & dimensions |
|---|
| Height | 19.9 mm |
| Depth | 243 mm |
| Width | 355 mm |
| Weight | 1.9 kg |
| Packaging data |
|---|
| Package weight | 4.35 kg |
| Package height | 335 mm |
| Package depth | 465 mm |
| Package width | 90 mm |
| General |
|---|
| Product family | ROG |
| Product series | Zephyrus M16 |
| Logistics data |
|---|
| Harmonized System (HS) code | 84713000 |
